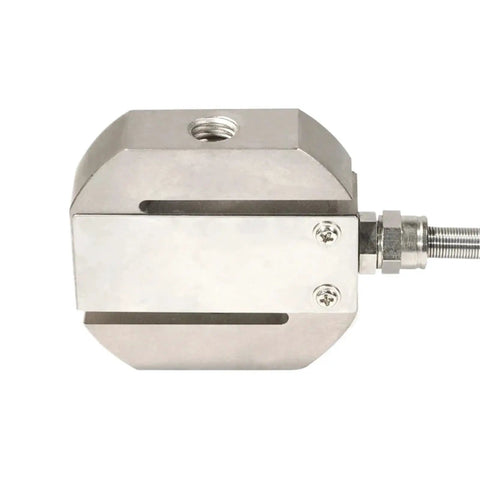

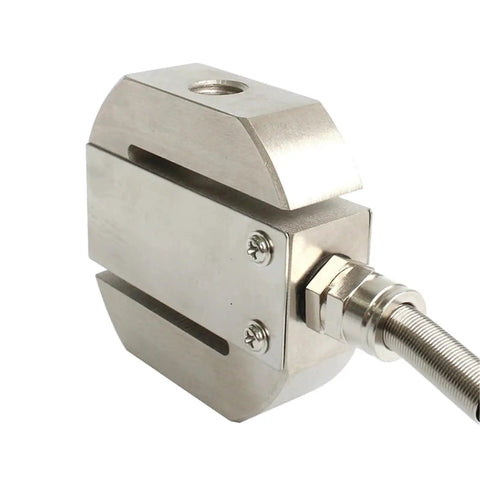

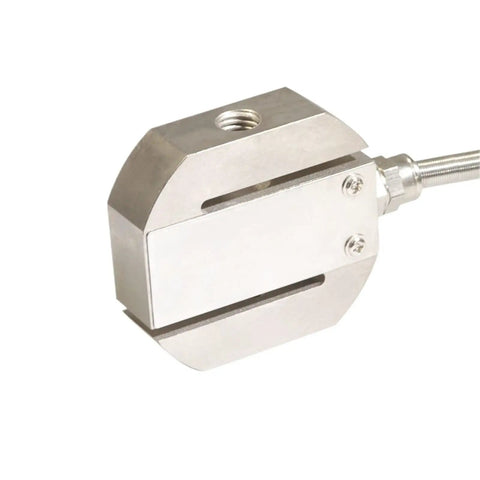

Heavy Duty Circular S Type Tension And Pressure Sensor For Industrial Grade Weighing Systems And Press Machines Hoisting Equipment Up To 10 Kg Railway Signal Control
✔️ Single unit with stainless steel body, IP65, 5-15V supply
This heavy-duty circular S-type pressure sensor is designed for industrial weighing systems, press machines, hoisting gear, and signaling/railway control systems. Its rugged stainless/alloy steel body, IP65 protection, and high-precision analog output make it ideal for harsh environments.
✅ Capacity: 5-5000 kg load cell with analog signal
✅ Sensitivity: 1.0-3.0±0.05 mV/V
✅ Material: Alloy steel and stainless steel housing
✅ Excitation: 5-15V DC
✅ Ingress protection: IP65; operating temp -20 to +80 C
✅ Accuracy: hysteresis 0.3% F.S., non-linearity 0.3% F.S., creep 0.3% F.S.
✅ Insulation resistance: 5000 MΩ; input/output ~350 Ω
💡 What is a load cell pressure sensor used for in heavy-duty industrial weighing and press systems?
It’s a handy, precise tool used to measure force in demanding environments, enabling accurate process monitoring and control.
- Used to monitor weights on industrial scales and bulk handling lines- Provide feedback for automated presses, hoisting, and safety interlocks
- Supports integration with PLCs and data logging for traceability
