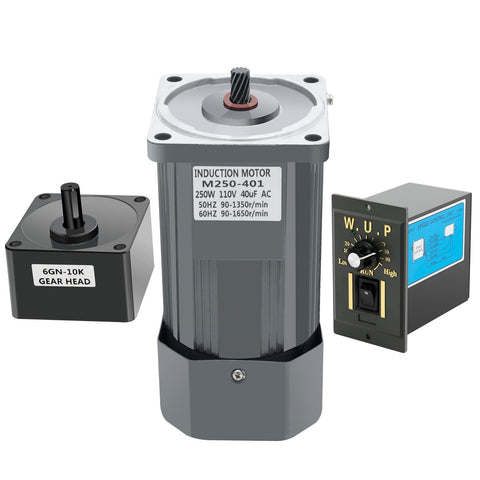

Heavy Duty Beefed Up 250W AC Gear Motor With Speed Controller, 135RPM Output, 10K Gear Reduction, Single Phase Forward Reverse Operation For Conveyor, Mixer, Rotary Table And Packaging, High Torque And Efficient Performance
This heavy-duty gear motor is designed for industrial automation and is commonly used on conveyor belts, mixers, rotary tables, and packaging lines. It’s a sturdy, high-torque solution for packaging, printing, textile, and food processing equipment.

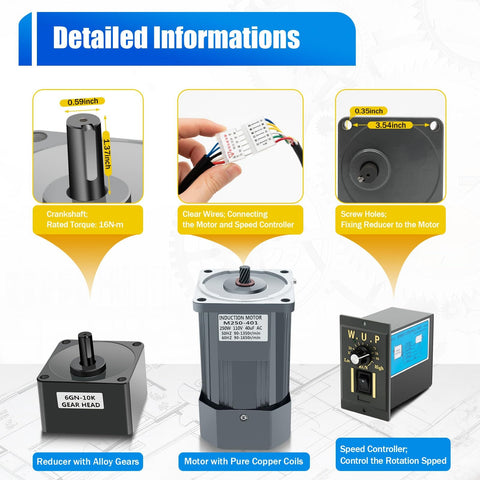

| Dimension | Metric | Imperial |
|---|---|---|
| Gear Motor Size | 100 × 100 × 290 mm | 3.94 × 3.94 × 11.42 in |
| Speed Controller Size | 60 × 100 × 100 mm | 2.36 × 3.94 × 3.94 in |
| Package Size | 325 × 290 × 200 mm | 12.80 × 11.42 × 7.87 in |
| Screw Hole Distance | 90 mm | 3.54 in |
| Screw Hole Diameter | 9 mm | 0.35 in |
| Crankshaft Diameter | 15 mm | 0.59 in |
| Crankshaft Length | 35 mm | 1.38 in |
| Net Weight | 7.05 kg | 15.54 lbs |
| Gross Weight | 8.15 kg | 17.96 lbs |
| Rated Voltage | 110V | 110V |
This gear motor delivers powerful torque with precision alloy gears, pure copper windings, and ball bearings for smooth operation and long service life. The die-cast and heat-treated construction helps reduce load resistance and heat buildup, making it suitable for demanding industrial tasks.

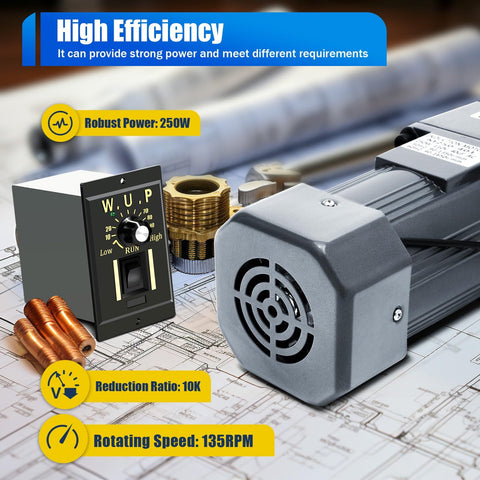

✅ 250W single-phase gear motor with 110V input and 60Hz operation
✅ Output speed 135 RPM with 10K gear reduction for high torque

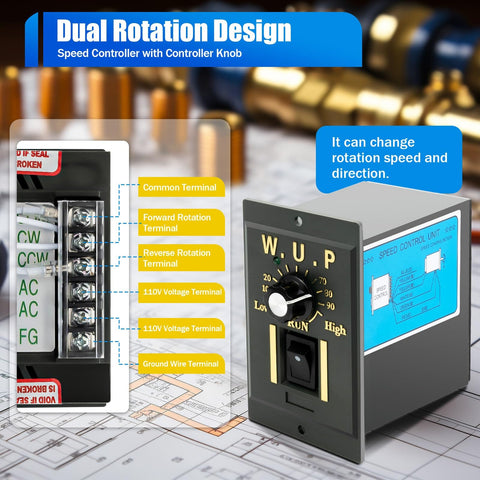

✅ Forward and reverse rotation enabled by a simple wiring option and speed control

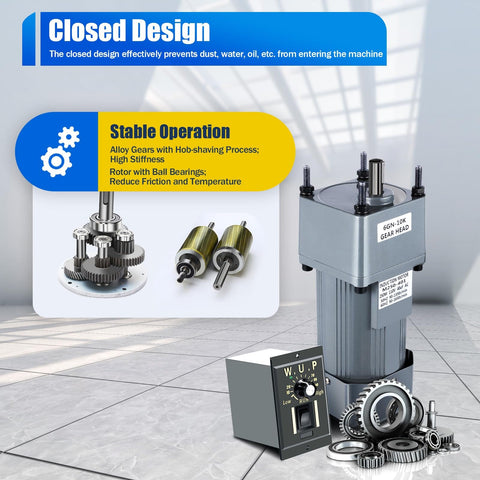

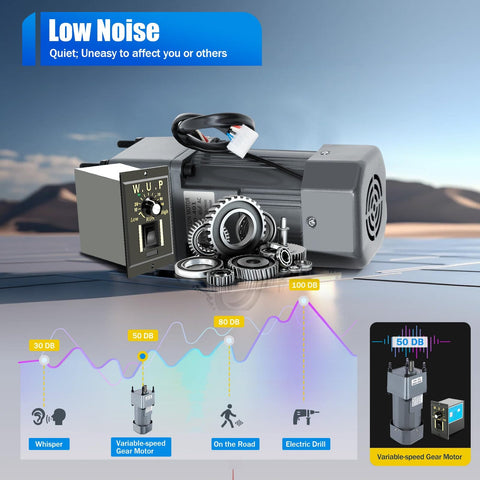

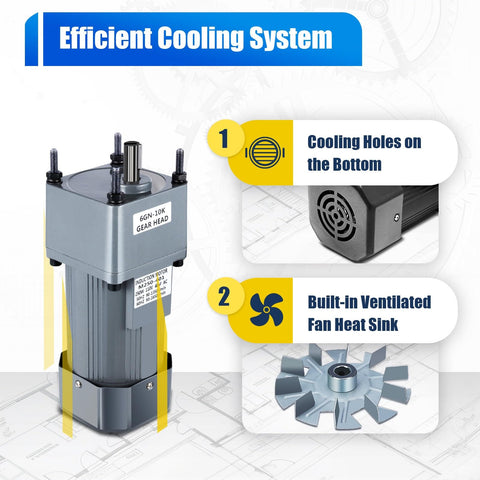

✅ Enclosed, low-noise design with cooling features for industrial environments
💡 What is a handy, heavy-duty gear motor used for in packaging and conveyor systems? - This handy gear motor is built to drive conveyors, mixers, rotary tables, and packaging lines with reliable torque. - It combines 250W single-phase power, 135 RPM output, and a 10K reduction for strong, steady motion. - The forward/reverse rotation and adjustable speed controller let you tailor performance on the fly. - The enclosed design and cooling holes help keep debris out and noise low in busy facilities.
