Heavy Duty Air Cylinder Rod Clevis Three Pack Mounting Bracket With Rear Pivot For Pneumatic Systems Silver 5mm Hole 52x24mm Size Made From Durable Low Carbon Steel
✔️ Low-Carbon Steel, 5mm hole, 52x24mm, 3-pack

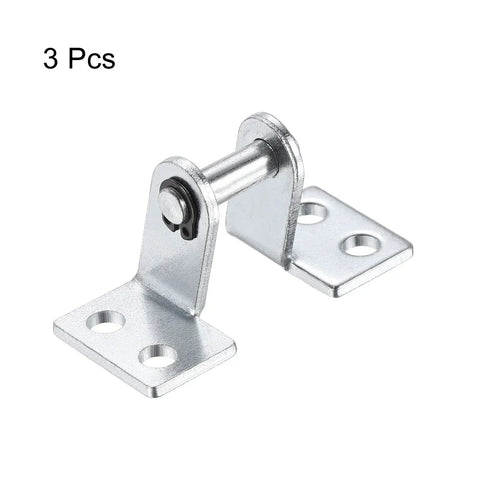

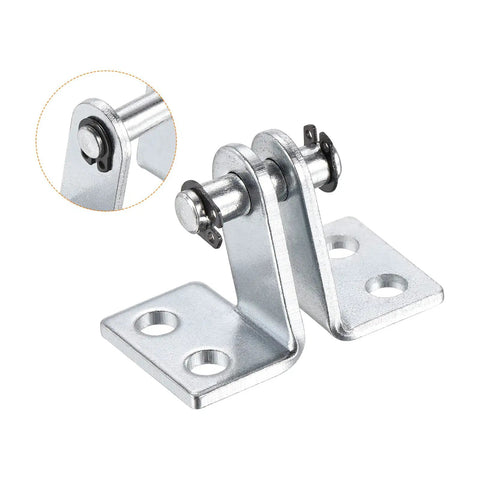

Three-piece cylinder clevis mounting brackets designed for standard pneumatic setups. They serve as rear-pivot connections for cylinder rods in automation tasks like workshop pneumatics, material handling, and robotics. Made from durable low-carbon steel with a silver finish, these brackets fit 5mm mounting holes and a 52x24mm footprint, providing a sturdy, reliable link in your pneumatic assemblies.

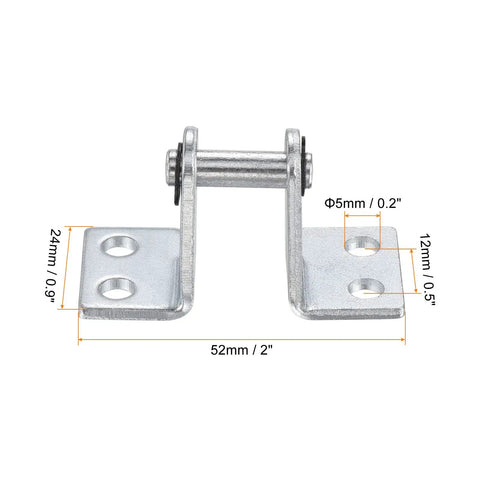

Dimensions and fitment
| Dimension | mm | in |
|---|---|---|
| Total size (L x W) | 52 x 24 | 2 x 0.9 |
| Installation hole diameter | 5 | 0.2 |
| Hole distance | 12 | 0.5 |
Color: Silver - Material: Low-Carbon Steel - Installation Hole Diameter: 5mm / 0.2 in - Installation Hole Distance: 12mm / 0.5 in - Total Size: 52 x 24 mm / 2 x 0.9 in - Package Contents: 3 x Cylinder Clevis Mounting Bracket
✅ Color: Silver

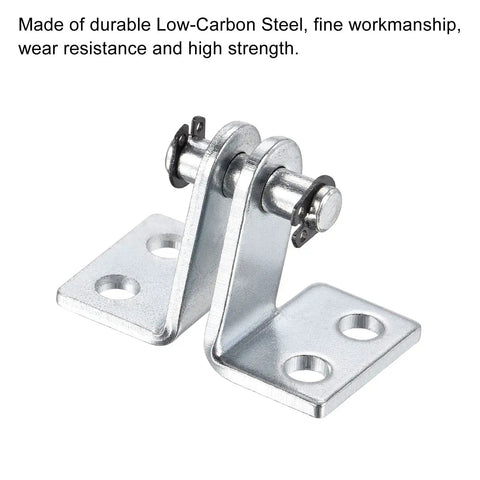

✅ Material: Low-Carbon Steel
✅ Installation Hole Diameter: 5mm / 0.2 in
✅ Installation Hole Distance: 12mm / 0.5 in
✅ Total Size: 52 x 24 mm / 2 x 0.9 in

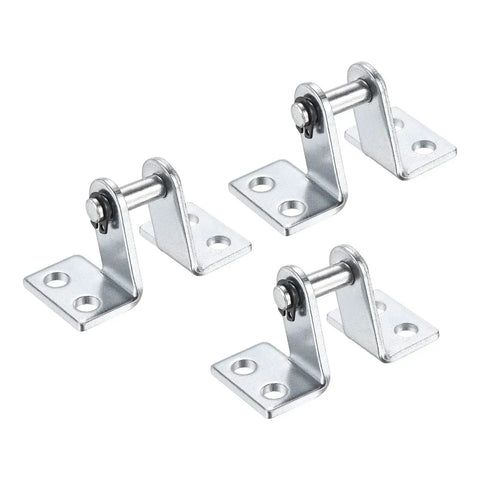

✅ Package Contents: 3 x Cylinder Clevis Mounting Bracket
💡 What is a cylinder clevis mounting bracket used for in pneumatic systems? A handy connector that links cylinder rods to mounting points in automation, making setup quicker and more reliable.
- Used to connect pneumatic cylinders to rods and mounting points - Suitable for both single acting and double acting configurations - Made from durable low-carbon steel for long service life
