Heavy Duty 6 Inch Corner Welding Square Rock Solid Steel Fabrication Jig With Dead On Alignment Fits 5 8 Inch And 16MM Tooling Tables For Lightning Fast Setups

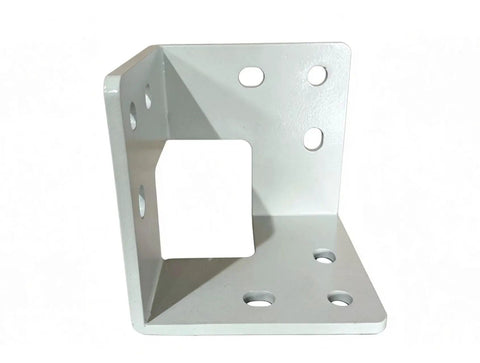

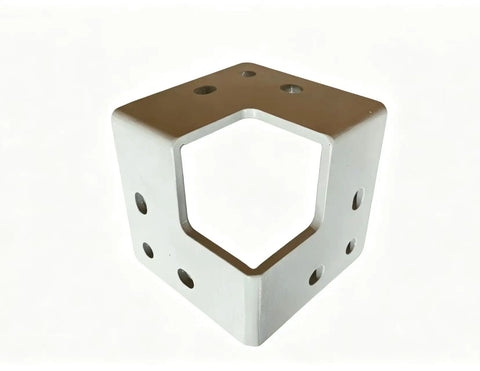

Rock Solid 6 Inch Steel Corner Square for Weld Setup
✔️ Fits 16mm and 5\/8 inch plates, 8mm thickness steel, rigid design

This six-inch steel positioning tool acts as a go-to layout guide for shop floors, fabrication benches, and custom metalwork gigs. It clamps flat against stock to guarantee bang-on ninety-degree intersections without constantly pulling out tapes. Pros grab it for knockouts, tack welding, and repeated angle tracing across aluminum, mild steel, and stainless plates.

✅ 152 mm overall length spans both straight arms for full coverage
✅ 16 millimeter hole patterns accept M10 studs alongside 16 mm hex bars
✅ 5\/8 inch bolt spacing matches modular fixturing rails common in American shops
✅ Eight millimeter base plate handles torch heat without drooping or warping
✅ Flat machined reference faces deliver repeatable placements every single shift

💡 What makes a rigid corner welding square ideal for precision metal fabrication?

Using a heavy layout square is a handy move for keeping your joints tight and knocking out grind passes fast during production runs. The thick cross bar stops flex when clamped to uneven stock. - Maintains a true ninety degree face even after repeated hammer impacts - Accepts standard dowel pins for secure mounting on predrilled fixture beds - Distributes clamping pressure evenly across the base to stop warping - Provides reliable reference lines for cutting torches and plasma guides ✝️
