Heavy Duty 2 Piece HGR20 Linear Guide Rail Kit With 4 HGH20CA Carriage Blocks And SFU1605 Ball Screw Assembly 500mm Length For Slick DIY CNC Builds And Top Shelf Smooth Operator Performance

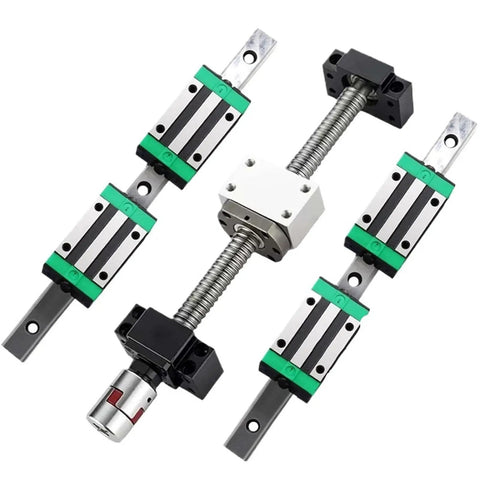

Complete 2 piece HGR20 slide kit with SFU1605 ball screw
✔️ Four matching HGH20CA carriages mount directly to steel plates

This ready-to-mount motion package bundles dual square guide rails with a 500 millimeter ground ball shaft for reliable XYZ tracking. Hobby makers and shop operators slap it onto aluminum extrusion or flat sheet metal for custom CNC mills and routing stations. The sealed carriage blocks keep debris out while the threaded rod spins at high RPM to shave material fast.

✅ Two matched HGR20 linear guide bars measuring 500 mm each
✅ Four HGH20CA recirculating carriages with double row rollers

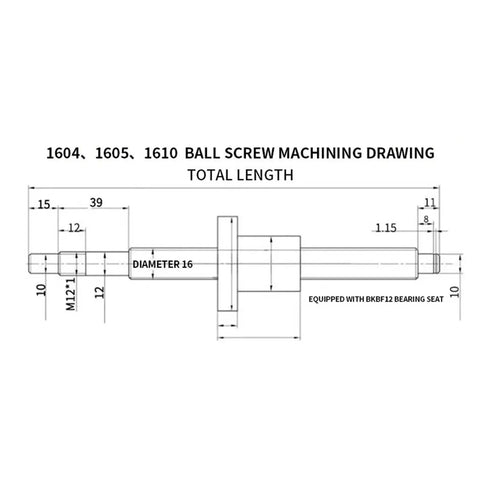

✅ SFU1605 ground ball screw shaft featuring wide lead pitch
✅ Adjustable preload locking nuts eliminate free play instantly
✅ Sturdy frame fits desktop mills and open frame laser cutters

💡 How does a paired linear guide and ball screw drive improve axis rigidity over standard v channels?

Standard v track setups flex under sudden spindle load, which causes visible stair stepping on machined surfaces.
- Square profile rail mounting distributes cutting forces evenly across the machine base
- Preloaded ball screw compensation keeps lead clearance near zero during tight tolerance passes
- Handy bolt on swap that upgrades cheap DIY benches into steady machining stations
✝️
