Heavy Duty 12V Linear Actuator With 8 Inch Stroke 176 Lbs Load 0.78 Inch Per Second Speed IP65 Rated Waterproof Dustproof Mounting Brackets Included Ideal For Door Openers Solar Trackers Electric Lifting Systems JQDML
✔️ 800N max load, 0.78 in/s, 13-21 in travel, IP65, 1PC + 2 brackets
This 12V DC linear actuator delivers reliable push-pull motion for doors, lifting platforms, solar trackers, and other compact automation projects. Built with aluminum alloy housing and IP65 protection, it's ready for outdoor and industrial environments.
| Dimension | Inches | Millimeters |
|---|---|---|
| Stroke length | 8 in | 200 mm |
| Fully retracted length | 13 in | 330 mm |
| Fully extended length | 21 in | 530 mm |
| Speed | 0.78 in/s | 20 mm/s |
| Max load | 176 lb | 800 N |
| Voltage | 12 V DC | N/A |
| IP rating | IP65 | IP65 |

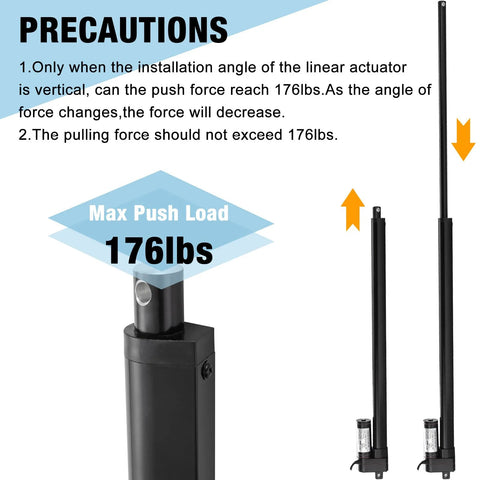

✅ 800N (176 lb) maximum load
✅ Stroke length 8 inches (200 mm)
✅ Retracted length 13 inches (330 mm)
✅ Extended length 21 inches (530 mm)
✅ Speed 0.78 in/s (20 mm/s)
✅ IP65 waterproof and dustproof
💡 What is a 12V linear actuator used for in home and light industrial projects? This handy device provides controlled linear motion for compact automation. - Use case: door openers and lift tables - Best for solar trackers and adjustable platforms - Works with 12V DC control systems and built-in limit switches - Quiet operation and robust IP65 housing
