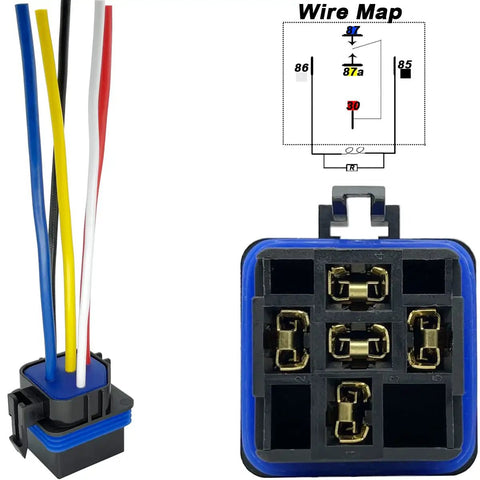

Heavy Duty 12V DC Automotive Relay 5 Pin SPDT 40 Amp And 30 Amp Dual Rating Waterproof And Dustproof With Rugged Wiring Built For Car Electronics Lights Fans Winches And Other Accessories
✔️ 12V DC coil, SPDT with NO/NC, 40A @14V DC, waterproof
The 12V DC automotive relay is a rugged SPDT switch designed for car electronics, lights, fans, winches, and other accessories. It offers excellent water-repellent and dustproof protection, but do not use it in water.
✅ Nominal Coil Voltage: 12 V DC
✅ Coil Power: 1.8 W
✅ Coil Resistance: 80 Ω
✅ Must Operate Voltage: 6-8 V DC
✅ Must Release Voltage: 0.6-3.6 V DC
✅ Maximum Applied Voltage: 15.6 V DC
✅ Contact Ratings: NO 40 A at 14 V DC
✅ Contact Resistance: 100 mΩ max at 6 V DC 1 A
✅ Max Switching Current: 40 A
✅ Max Switching Power: 560 W
✅ Life Electrical: 100,000 operations (at 30 ops/min)
✅ Life Mechanical: 10,000,000 operations
✅ Temperature Range: -30 to +80 °C
✅ Dielectric Strength Between Open Contacts: 500 VAC (1 minute)
✅ Dielectric Strength Between Contact and Coil: 750 VAC (1 minute)
✅ Humidity: 40% ~ 85%
✅ Insulation Resistance: 100 MΩ min at 500 VDC
✅ Packaging Content: 1 x 12V DC waterproof relay kit
💡 What is a 12V SPDT automotive relay used for in car circuits?
This handy device lets you switch high-current accessories from a low-current trigger.
- High-current loads such as lights, fans, and winches can be controlled by a low-current switch
- SPDT configuration enables normally open or normally closed wiring
- 12V DC coil with 1.8 W coil power supports microcontroller or relay modules
- Up to 40 A switching current at 14 V DC ensures compatibility with automotive accessories
