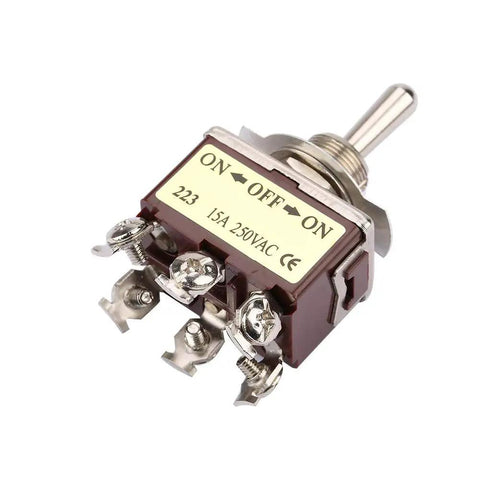

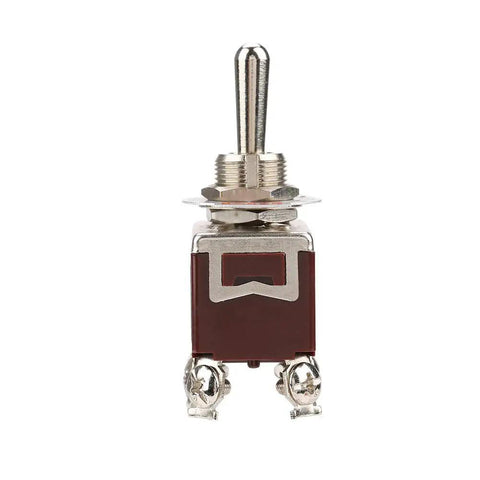

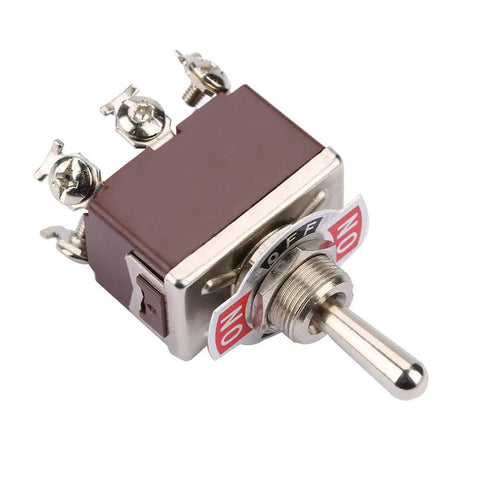

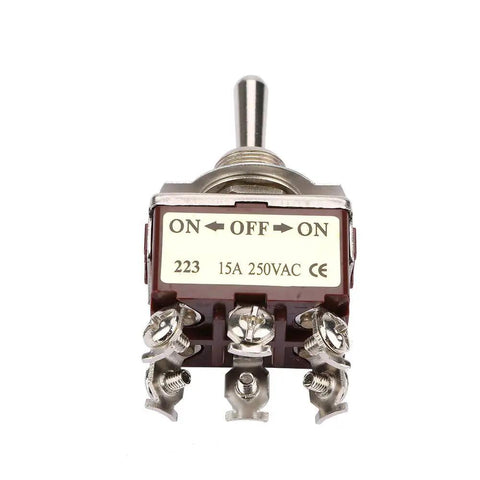

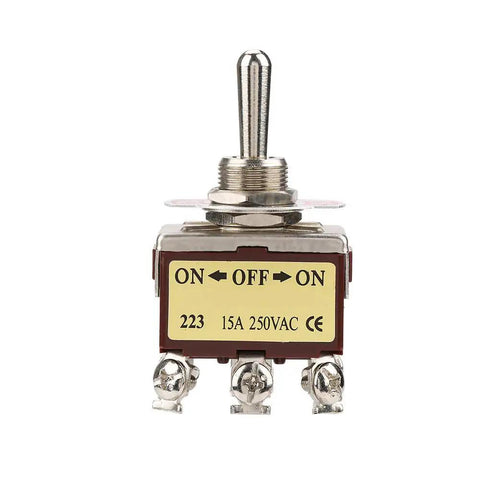

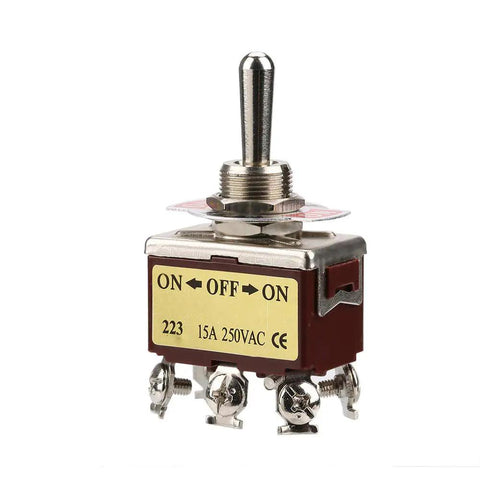

Heavy Duty 12Mm Panel Mount Toggle Switch With On Off On Circuit And Six Pin Connectors Rated At Fifteen Amps 250V Ac Made For Daily Drivers And Garage Builds Rock Solid Quality Guaranteed
✔️ 15A 250VAC Load Six Terminal SPDT Solder Tab Design Specs
Sold as a single unit, this heavy duty toggle switch features a compact 12 mm body designed for tight dashboards and control boxes. You will typically install it in trucks, RVs, boat panels, workshop equipment, and home garage builds where reliable manual switching is required.
✅ 12 mm round mounting diameter with included locking hardware✅ Triple position spring loaded lever returns to center quickly

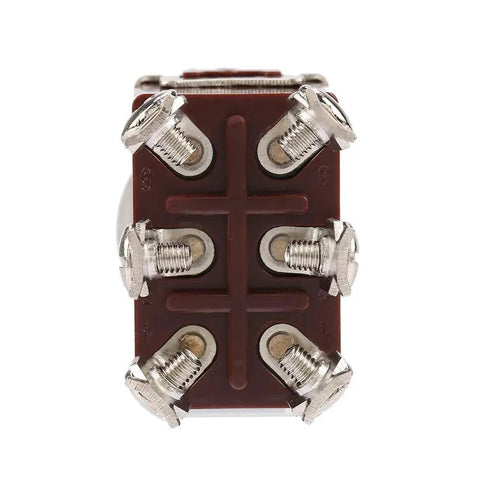

✅ Six copper solder terminals arranged for straightforward wiring
✅ Heavy duty internal frames handle continuous 15 amp loads easily
💡 How do you wire a six terminal toggle switch for momentary operation?
This gig is handy when you need quick control over trailer plugs or workshop gear. Here is the lay of the land for nailing the wiring down.
* Run your main hot wire straight to the middle solder lug for clean current flow
* Tie the outer tabs to your lighting or pump harnesses for clear circuit separation
* Swap out brittle factory plastic links for solid copper strands to stop heat warping
* Test the spring return feel before tucking everything snug inside your metal box
