Heavy Duty 120VAC DPDT Power Relay With Two Form C Contacts For HVAC And Industrial Switching The Workhorse 30A Rating 8 Terminal DIN Rail Or Panel Mount Class F Enclosed Control Relay
✔️ 120VAC coil, 30A NO / 3A NC, 2 Form C, 8 terminals
This heavy duty enclosed control relay is designed for HVAC and industrial control panels, with DIN rail or panel mounting for quick replacement in crowded cabinets.
✅ DPDT (2 Form C) with 120VAC coil
✅ 30A NO / 3A NC
✅ 277VAC resistive / 30A (UL); 30A @ 250VAC-1 (IEC)
✅ Max switching: 300VAC/DC (UL); 250VAC/DC (IEC)
✅ Coil resistance 4.25kΩ, power 3.2-4.4VA
✅ Class F insulation
✅ Silver alloy contacts
✅ DIN rail or panel mounting
✅ Operating temp -40 to 55 C
✅ Mechanical durability 5,000,000 cycles
✅ Electrical durability 100,000 cycles (resistive)

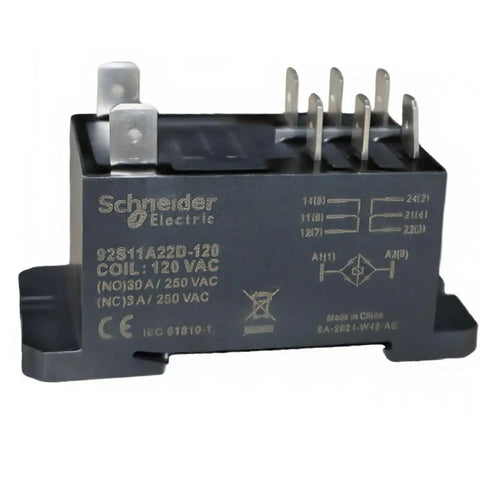

✅ Part No.: 92S11A22D-120 (alias W92S11A22D-120)
💡 What is a 120VAC DPDT relay used for in HVAC and industrial control panels?
A handy device for switching high-current loads with isolation between coil and contacts.
- DPDT form C arrangement supports interlocking and control circuits
- 120VAC coil matches common HVAC control boards
- DIN rail or panel mounting makes replacements quick
- Silver alloy contacts provide durability in frequent switching
