VXB

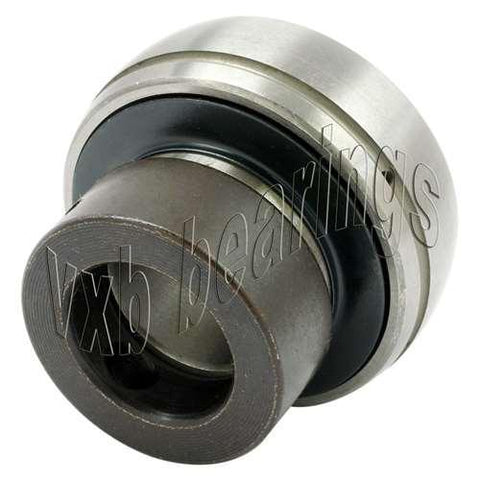

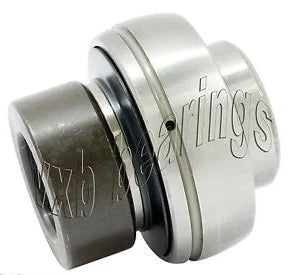

HCS202-15mm Bearing Insert 15mm Mounted
Title
$70.99
SKU: Kit19080
UPC: 00193019268544
UPC: 00193019268544
Item: HCS202-15mm Bearing
Type: Bearing Insert
Shaft Diameter: 15mm
Dynamic Load Rating: 9608 N
Static Load Rating: 4448 N
Type: Bearing Insert
Shaft Diameter: 15mm
Dynamic Load Rating: 9608 N
Static Load Rating: 4448 N
This item will be shipped within One Week Returns Subject to 15% restocking Fee |
HCS202-15mm Bearing Insert Eccentric Locking Collar 15mm Inner Diameter |
HCS202-15mm Bearing Insert, Bearing is Standard load capacity, bearing is Wide inner ring with spherical outer ring, Bearing is relubrication groove with oil hole on set screw side, bearing has oil hole opposite groove makes it interchangeable with all manufacturers, bearing is nylon patched class 3A set screw, Standard seal is R-Seal.
|

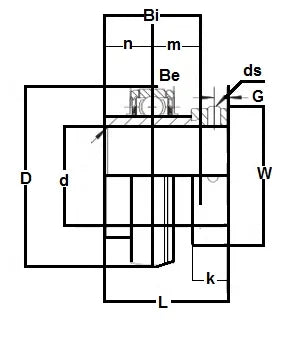

Dimensions (Inches) | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|
D | L | Bi | Be | r | n | m | W | K | G | ds(UNF-Thread) |
47 | 43.5 | 34 | 15 | 1.5 | 17 | 17 | 32 | 13.5 | 5 | M6xP1.0 |
