VXB
HCR213-65mm Bearing Insert 65mm Mounted
$441.99
SKU: Kit19221
UPC: 00193019269923
UPC: 00193019269923
Item: HCR213-65mm Bearing
Type: Bearing Insert
Shaft Diameter: 65mm
Dynamic Load Rating: 62186 N
Static Load Rating: 35585 N
Type: Bearing Insert
Shaft Diameter: 65mm
Dynamic Load Rating: 62186 N
Static Load Rating: 35585 N
| This item will be shipped within One Week Returns Subject to 15% restocking Fee |
|
HCR213-65mm Bearing Insert Eccentric Locking Collar 65mm Inner Diameter |
HCR213-65mm Bearing Insert, Bearing is Standard load capacity, bearing is Wide inner ring with Cylindrical outer ring, Bearing is Non-relubrication, bearing has oil hole opposite groove makes it interchangeable with all manufacturers, bearing is nylon patched class 3A set screw, Standard seal is R-Seal.
|

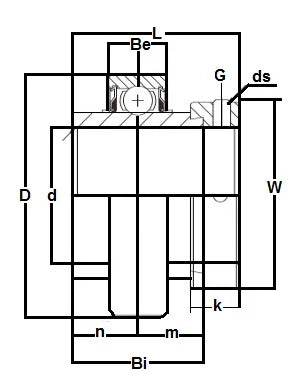

| Dimensions (mm) | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| D | L | Bi | Be | r | n | m | W | K | G | ds(UNF-Thread) |
| 120 | 85.7 | 68.2 | 27 | 2.5 | 34.1 | 34.1 | 86 | 23.5 | 8.5 | M12xP1.5 |
