VXB

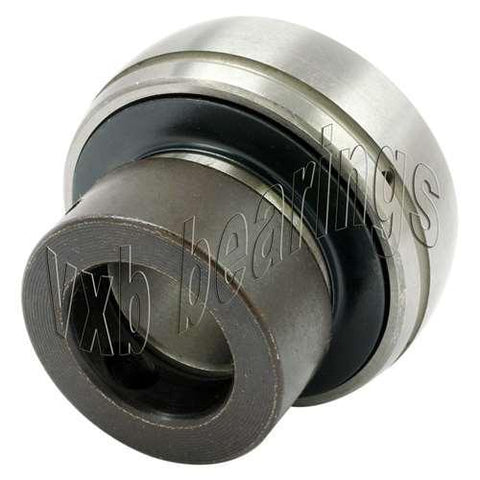

HCR212-60mm Bearing Insert 60mm Mounted
$422.99
SKU: Kit19220
UPC: 00193019269916
UPC: 00193019269916
Item: HCR212-60mm Bearing
Type: Bearing Insert
Shaft Diameter: 60mm
Dynamic Load Rating: 52400 N
Static Load Rating: 32250 N
Type: Bearing Insert
Shaft Diameter: 60mm
Dynamic Load Rating: 52400 N
Static Load Rating: 32250 N
| This item will be shipped within One Week Returns Subject to 15% restocking Fee |
|
HCR212-60mm Bearing Insert Eccentric Locking Collar 60mm Inner Diameter |
HCR212-60mm Bearing Insert, Bearing is Standard load capacity, bearing is Wide inner ring with Cylindrical outer ring, Bearing is Non-relubrication, bearing has oil hole opposite groove makes it interchangeable with all manufacturers, bearing is nylon patched class 3A set screw, Standard seal is R-Seal.
|

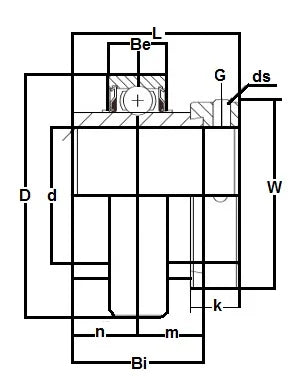

| Dimensions (mm) | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| D | L | Bi | Be | r | n | m | W | K | G | ds(UNF-Thread) |
| 110 | 77.8 | 61.8 | 27 | 2.5 | 30.9 | 30.9 | 84.1 | 22.2 | 8 | M12xP1.5 |
