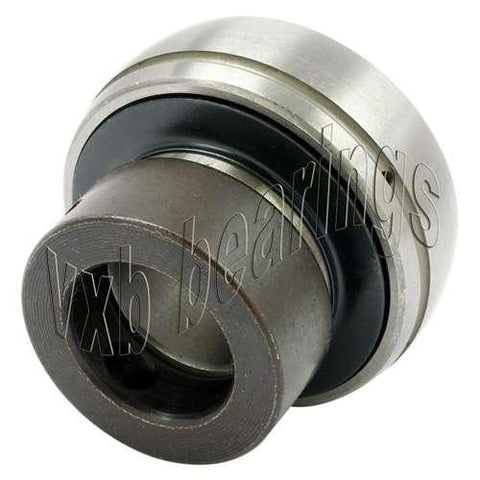

HCR206-30mm Bearing Insert 30mm Mounted
$113.99
SKU: Kit19214
UPC: 00193019269862
UPC: 00193019269862
Item: HCR206-30mm Bearing
Type: Bearing Insert
Shaft Diameter: 30mm
Dynamic Load Rating: 19440 N
Static Load Rating: 10320 N
Type: Bearing Insert
Shaft Diameter: 30mm
Dynamic Load Rating: 19440 N
Static Load Rating: 10320 N
|
HCR206-30mm Bearing Insert Eccentric Locking Collar 30mm Inner Diameter |
HCR206-30mm Bearing Insert, Bearing is Standard load capacity, bearing is Wide inner ring with Cylindrical outer ring, Bearing is Non-relubrication, bearing has oil hole opposite groove makes it interchangeable with all manufacturers, bearing is nylon patched class 3A set screw, Standard seal is R-Seal.
|
| Dimensions (mm) | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| D | L | Bi | Be | r | n | m | W | K | G | ds(UNF-Thread) |
| 62 | 48.3 | 36.4 | 18 | 1.5 | 18.2 | 18.2 | 44.5 | 15.9 | 6 | M8xP1.0 |
