VXB

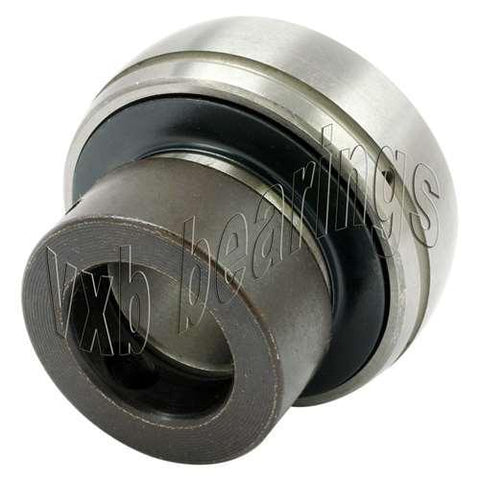

HCR205-25mm Bearing Insert 25mm Mounted
$89.99
SKU: Kit19213
UPC: 00193019269855
UPC: 00193019269855
Item: HCR205-25mm Bearing
Type: Bearing Insert
Shaft Diameter: 25mm
Dynamic Load Rating: 14011 N
Static Load Rating: 7161 N
Type: Bearing Insert
Shaft Diameter: 25mm
Dynamic Load Rating: 14011 N
Static Load Rating: 7161 N
|
HCR205-25mm Bearing Insert Eccentric Locking Collar 25mm Inner Diameter |
HCR205-25mm Bearing Insert, Bearing is Standard load capacity, bearing is Wide inner ring with Cylindrical outer ring, Bearing is Non-relubrication, bearing has oil hole opposite groove makes it interchangeable with all manufacturers, bearing is nylon patched class 3A set screw, Standard seal is R-Seal.
|

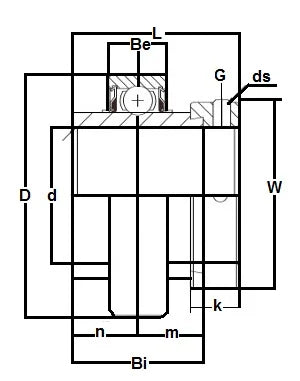

| Dimensions (mm) | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| D | L | Bi | Be | r | n | m | W | K | G | ds(UNF-Thread) |
| 52 | 44.3 | 34.8 | 15 | 1.5 | 17.4 | 17.4 | 38.1 | 13.5 | 4.8 | M6xP1.0 |
