VXB
HCR205-13 Bearing Insert 13/16 Inch Mounted
$84.99
SKU: Kit19190
UPC: 00193019269640
UPC: 00193019269640
Item: HCR205-13 Bearing
Type: Bearing Insert
Shaft Diameter: 13/16" Inch
Dynamic Load Rating: 14011 N
Static Load Rating: 7161 N
Type: Bearing Insert
Shaft Diameter: 13/16" Inch
Dynamic Load Rating: 14011 N
Static Load Rating: 7161 N
| This item will be shipped within One Week Returns Subject to 15% restocking Fee |
|
HCR205-13 Bearing Insert Eccentric Locking Collar 13/16" Inch Inner Diameter |
HCR205-13 Bearing Insert, Bearing is Standard load capacity, bearing is Wide inner ring with Cylindrical outer ring, Bearing is Non-relubrication, bearing has oil hole opposite groove makes it interchangeable with all manufacturers, bearing is nylon patched class 3A set screw, Standard seal is R-Seal.
|

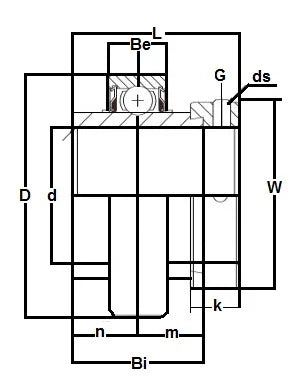

| Dimensions (Inches) | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| D | L | Bi | Be | r | n | m | W | K | G | ds(UNF-Thread) |
| 2-3/64" | 1-3/4" | 1-3/8" | 19/32" | 0.059" | 11/16" | 11/16" | 1-1/2" | 17/32" | 3/16" | 1/4-28x1/4 |
