VXB
HCR203-11 Bearing Insert 11/16 Inch Mounted
$111.99
SKU: Kit19188
UPC: 00193019269626
UPC: 00193019269626
Item: HCR203-11 Bearing
Type: Bearing Insert
Shaft Diameter: 11/16" Inch
Dynamic Load Rating: 12900 N
Static Load Rating: 6270 N
Type: Bearing Insert
Shaft Diameter: 11/16" Inch
Dynamic Load Rating: 12900 N
Static Load Rating: 6270 N
| This item will be shipped within One Week Returns Subject to 15% restocking Fee |
|
HCR203-11 Bearing Insert Eccentric Locking Collar 11/16" Inch Inner Diameter |
HCR203-11 Bearing Insert, Bearing is Standard load capacity, bearing is Wide inner ring with Cylindrical outer ring, Bearing is Non-relubrication, bearing has oil hole opposite groove makes it interchangeable with all manufacturers, bearing is nylon patched class 3A set screw, Standard seal is R-Seal.
|

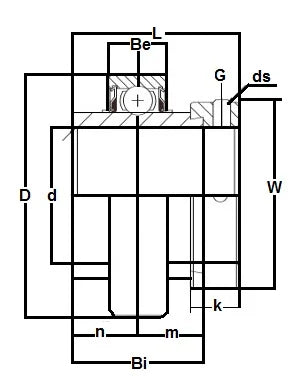

| Dimensions (Inches) | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| D | L | Bi | Be | r | n | m | W | K | G | ds(UNF-Thread) |
| 1-55/64" | 1-23/32" | 1-25/64" | 19/32" | 0.059" | 21/32" | 21/32" | 1-1/4" | 17/32" | 13/64" | 1/4-28x1/4 |
