HCFL210-29 2 Bolt Flanged Housing Mounted Bearing with Eccentric Collar Lock 1 13/16" Inch
$98.99
SKU: HCFL210-29
UPC: 00193019200254
UPC: 00193019200254
Item: HCFL210-29
Type: 2 Bolt Flanged Housing Bearing Eccentric Collar Lock
Shaft Diameter: 1 13/16" Inch
Dynamic Load Rating: 32695 N
Static Load Rating: 18460 N
Type: 2 Bolt Flanged Housing Bearing Eccentric Collar Lock
Shaft Diameter: 1 13/16" Inch
Dynamic Load Rating: 32695 N
Static Load Rating: 18460 N
| HCFL210-29 2 Bolt Flanged Housing Mounted Bearing with Eccentric Collar Lock 1 13/16" Inch Inner Diameter |
HCFL210-29 2 bolt flanged housing bearing with eccentric locking collar.
|

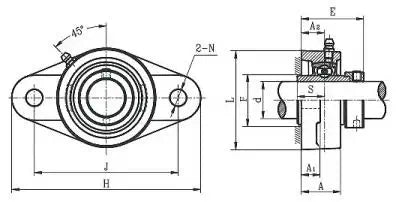

| Dimensions (Inches) | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| D | H | J | N | A | A1 | A2 | E | L | S | ||
| 1 7/8" | 7 3/4 " | 6 3/16 " | 23/32 " | 1 3/4 " | 25/32 " | 1 1/8 " | 2 19/32 " | 4 7/32 " | 31/32 " |
||
