VXB
HC214 70mm Bearing Insert with eccentric collar Mounted
$130.99
SKU: Kit19091
UPC: 00193019268650
UPC: 00193019268650
Item: HC214-70mm Bearing
Type: Bearing Insert
Shaft Diameter: 70mm
Dynamic Load Rating: 62275 N
Static Load Rating: 39144 N
Type: Bearing Insert
Shaft Diameter: 70mm
Dynamic Load Rating: 62275 N
Static Load Rating: 39144 N
|
HC214 70mm Bearing Insert Eccentric Locking Collar 70mm Inner Diameter |
HC214-70mm Bearing Insert, Bearing is Standard load capacity, bearing is Wide inner ring with spherical outer ring, Bearing is re lubrication groove with oil hole on set screw side, bearing has oil hole opposite groove makes it interchangeable with all manufacturers, bearing is nylon patched class 3A set screw, Standard seal is R-Seal.
|

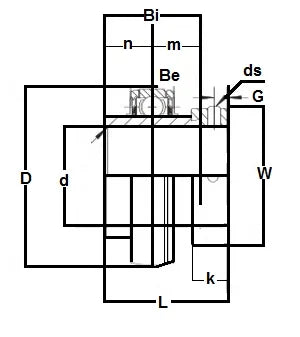

| Dimensions (mm) | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| D | L | Bi | Be | r | n | m | W | K | G | ds(UNF-Thread) |
| 125 | 85.7 | 68.2 | 29 | 2.5 | 34.1 | 34.1 | 90 | 23.8 | 8.5 | M12xP1.5 |
