HC212-60mm Bearing Insert with Eccentric Collar 60mm Mounted
$100.99
SKU: Kit19090
UPC: 00193019268643
UPC: 00193019268643
Item: HC212-60mm Bearing
Type: Bearing Insert with Eccentric Collar
Shaft Diameter: 60mm
Dynamic Load Rating: 52400 N
Static Load Rating: 32249 N
Type: Bearing Insert with Eccentric Collar
Shaft Diameter: 60mm
Dynamic Load Rating: 52400 N
Static Load Rating: 32249 N
|
HC212 60mm Bearing Insert Eccentric Locking Collar 60mm Inner Diameter |
HC212 60mm Bearing Insert, Bearing is Standard load capacity, bearing is Wide inner ring with spherical outer ring, Bearing is relubrication groove with oil hole on set screw side, bearing has oil hole opposite groove makes it interchangeable with all manufacturers, bearing is nylon patched class 3A set screw, Standard seal is R-Seal.
|

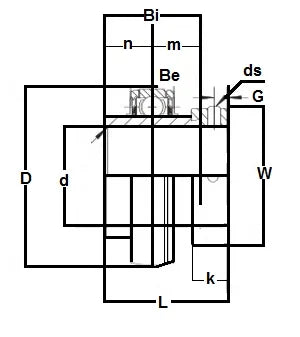

| Dimensions (mm) | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| D | L | Bi | Be | r | n | m | W | K | G | ds(UNF-Thread) |
| 110 | 77.8 | 61.8 | 27 | 2.5 | 30.9 | 30.9 | 84.1 | 22.2 | 8 | M12xP1.5 |
