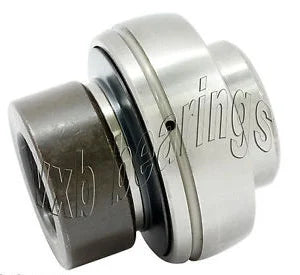

HC211-34 Bearing Insert with Eccentric collar 2 1/8 Inch Mounted
$98.99
SKU: Kit19065
UPC: 00193019268391
UPC: 00193019268391
Item: HC211-34 Bearing
Type: Bearing Insert with eccentric collar
Shaft Diameter: 2 1/8" Inch
Dynamic Load Rating: 32695 N
Static Load Rating: 18460 N
Type: Bearing Insert with eccentric collar
Shaft Diameter: 2 1/8" Inch
Dynamic Load Rating: 32695 N
Static Load Rating: 18460 N
|
HC211-34 Bearing Insert Eccentric Locking Collar 2 1/8" Inch Inner Diameter |
HC211-34 Bearing Insert, Bearing is Standard load capacity, bearing is Wide inner ring with spherical outer ring, Bearing is relubrication groove with oil hole on set screw side, bearing has oil hole opposite groove makes it interchangeable with all manufacturers, bearing is nylon patched class 3A set screw, Standard seal is R-Seal.
|

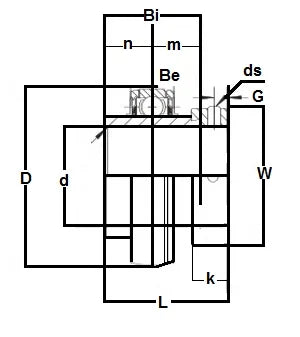

| Dimensions (Inches) | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| D | L | Bi | Be | r | n | m | W | K | G | ds(UNF-Thread) |
| 3-15/16" | 2-13/16" | 2-3/16" | 63/64" | 0.098" | 1-7/64" | 1-7/64" | 3" | 13/16" | 0.315" | 7/16-20x7/16 |
