HC210 50mm Bearing Insert with Eccentric Collar 50mm Mounted
$65.99
SKU: Kit19088
UPC: 00193019268629
UPC: 00193019268629
Item: HC210-50mm Bearing
Type: Bearing Insert with eccentric collar
Shaft Diameter: 50mm
Dynamic Load Rating: 32695 N
Static Load Rating: 18460 N
Type: Bearing Insert with eccentric collar
Shaft Diameter: 50mm
Dynamic Load Rating: 32695 N
Static Load Rating: 18460 N
|
HC210 50mm Bearing Insert Eccentric Locking Collar 50mm Inner Diameter |
HC210 50mm Bearing Insert, Bearing is Standard load capacity, bearing is Wide inner ring with spherical outer ring, Bearing is relubrication groove with oil hole on set screw side, bearing has oil hole opposite groove makes it interchangeable with all manufacturers, bearing is nylon patched class 3A set screw, Standard seal is R-Seal.
|

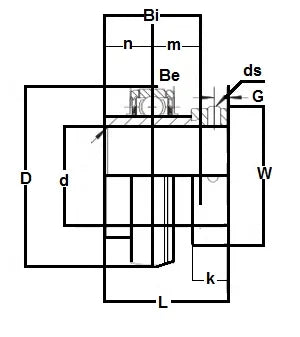

| Dimensions (mm) | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| D | L | Bi | Be | r | n | m | W | K | G | ds(UNF-Thread) |
| 90 | 62.7 | 49.2 | 22 | 2 | 24.6 | 24.6 | 69.9 | 18.3 | 6.5 | M10xP1.25 |
