HC207-23 Bearing Insert - Eccentric Collar 1-7/16" inch Mounted

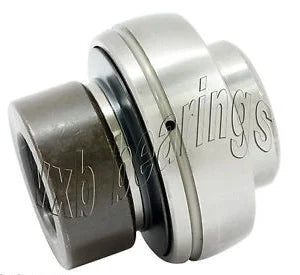

HC207-23 Bearing Insert
✔️ 1-7/16" Inch ID - Eccentric Locking Collar
The HC207-23 is a wide inner ring bearing insert designed with an eccentric locking collar for secure shaft attachment. Built with a spherical outer ring, it features relubrication grooves and oil holes for long-lasting service and compatibility with most manufacturers. Ideal for agricultural, industrial, and heavy-duty applications.
✅ Bearing insert with eccentric locking collar
✅ Shaft diameter: 1-7/16" inch
✅ Wide inner ring with spherical outer ring
✅ Nylon patched class 3A set screw for extra holding power
✅ R-Seal standard for dust and contamination protection
✅ Relubrication groove and oil holes for extended service life
✅ Dynamic load rating: 19,440 N
✅ Static load rating: 10,320 N
✅ Pack size: 1 bearing

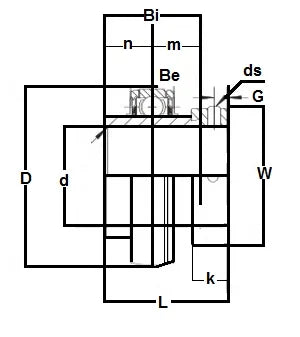

Table of Dimensions (Inches):
| D (OD) | L | Bi | Be | r | n | m | W | K | G | ds (Thread) |
|---|---|---|---|---|---|---|---|---|---|---|
| 2-53/64" | 2-1/64" | 1-1/2" | 3/4" | 5/64" | 3/4" | 3/4" | 2-3/16" | 11/16" | 0.256" | 3/8-24x3/8 |
💡 Why use an eccentric locking collar insert bearing?
Eccentric locking collars are widely chosen for their reliability in securing shafts without complex mounting.
-
Easy installation and firm shaft grip
-
Designed to handle high loads with smooth operation
-
Relubrication features extend bearing service life
-
Great for conveyors, fans, and heavy equipment
If you need a tough, easy-to-mount insert bearing for a 1-7/16" shaft, the HC207-23 is a proven solution, order today and keep your machines running strong.
