VXB

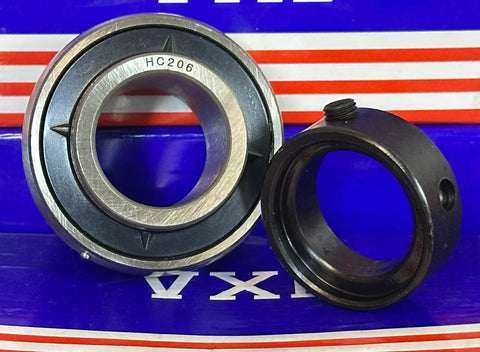

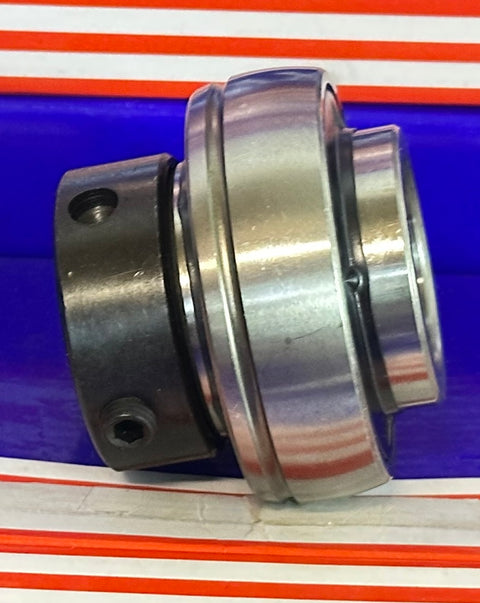

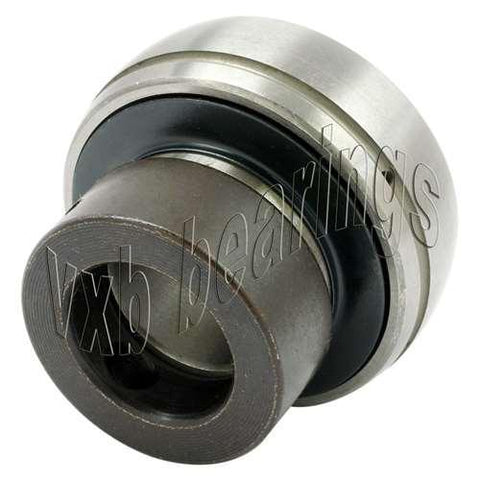

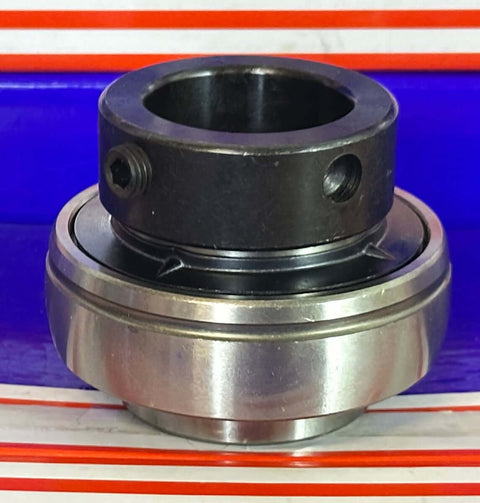

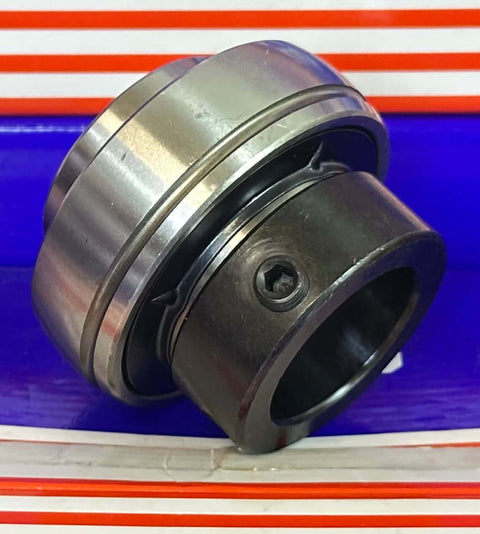

HC206 30mm Bearing Insert 30mm Mounted with Eccentric Collar lock
$82.99
SKU: Kit19084
UPC: 00193019268582
UPC: 00193019268582
Item: HC206-30mm Bearing
Type: Bearing Insert
Shaft Diameter: 30mm
Dynamic Load Rating: 19440 N
Static Load Rating: 10320 N
Type: Bearing Insert
Shaft Diameter: 30mm
Dynamic Load Rating: 19440 N
Static Load Rating: 10320 N
|
HC206 30mm Bearing Insert Eccentric Locking Collar 30mm Inner Diameter |
HC206-30mm Bearing Insert, Bearing is Standard load capacity, bearing is Wide inner ring with spherical outer ring, Bearing is relubrication groove with oil hole on set screw side, bearing has oil hole opposite groove makes it interchangeable with all manufacturers, bearing is nylon patched class 3A set screw, Standard seal is R-Seal.
|

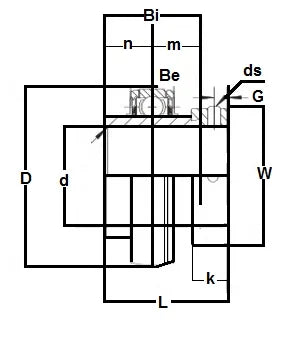

| Dimensions (mm) | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| D | L | Bi | Be | r | n | m | W | K | G | ds(UNF-Thread) |
| 62 | 48.3 | 36.4 | 18 | 1.5 | 18.2 | 18.2 | 44.5 | 15.9 | 6 | M8xP1.0 |
