HC203-11 Bearing Insert Eccentric Locking Collar 11/16 Inch Mounted

$30.99
SKU: Kit19040
UPC: 00193019268155
Item: HC203-11 Bearing
Type: Bearing Insert
Shaft Diameter: 11/16" Inch
Dynamic Load Rating: 12900 N
Static Load Rating: 6270 N

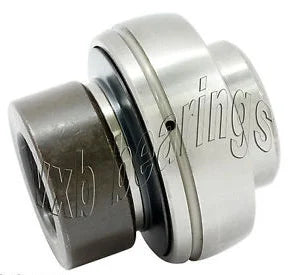

HC203-11 Bearing Insert
Eccentric Locking Collar
11/16" Inch Inner Diameter



HC203-11 Bearing Insert, Bearing is Standard load capacity, bearing is Wide inner ring with spherical outer ring, Bearing is relubrication groove with oil hole on set screw side, bearing has oil hole opposite groove makes it interchangeable with all manufacturers, bearing is nylon patched class 3A set screw, Standard seal is R-Seal.

  • Item: HC203-11 Bearing
  • Type: Bearing Insert
  • Shaft Diameter: 11/16" Inch
  • Dynamic Load Rating: 12900 N
  • Static Load Rating: 6270 N
  • Quantity: One Bearing
  • Ball Bearing

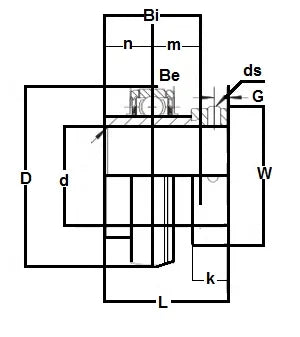

Dimensions (Inches)
D L Bi Be r n m W K G ds(UNF-Thread)
1-55/64" 1-23/32" 1-25/64" 19/32" 0.059" 21/32" 21/32" 1-1/4" 17/32" 13/64" 1/4-28x1/4
