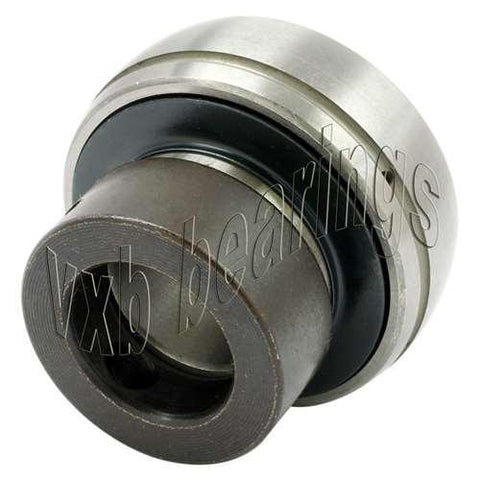

HC201-8 Bearing insert with eccentric collar 1/2 Inch
$31.99
SKU: Kit19037
UPC: 00193019268124
UPC: 00193019268124
Item: HC201-8 Bearing
Type: Bearing Insert
Shaft Diameter: 1/2" Inch
Dynamic Load Rating: 12900 N
Static Load Rating: 6270 N
Type: Bearing Insert
Shaft Diameter: 1/2" Inch
Dynamic Load Rating: 12900 N
Static Load Rating: 6270 N
|
HC201-8 Bearing Insert Eccentric Locking Collar 1/2" Inch Inner Diameter |
HC201-8 Bearing Insert, Bearing is Standard load capacity, bearing is wide inner ring with spherical outer ring, Bearing has re-lubrication groove with oil hole on set screw side, bearing has oil hole opposite groove makes it interchangeable with all manufacturers, bearing is nylon patched class 3A set screw, Standard seal is R-Seal.
|

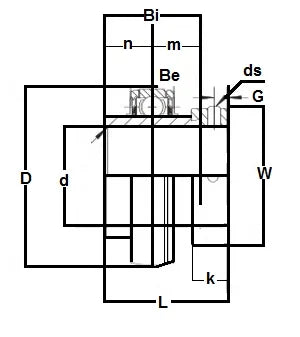

| Dimensions (Inches) | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| D | L | Bi | Be | r | n | m | W | K | G | ds(UNF-Thread) |
| 1-55/64" | 1-23/32" | 1-25/64" | 19/32" | 0.059" | 21/32" | 21/32" | 1-1/4" | 17/32" | 13/64" | 1/4-28x1/4 |
