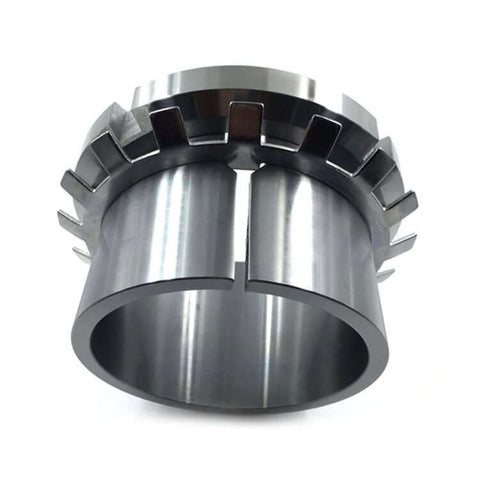

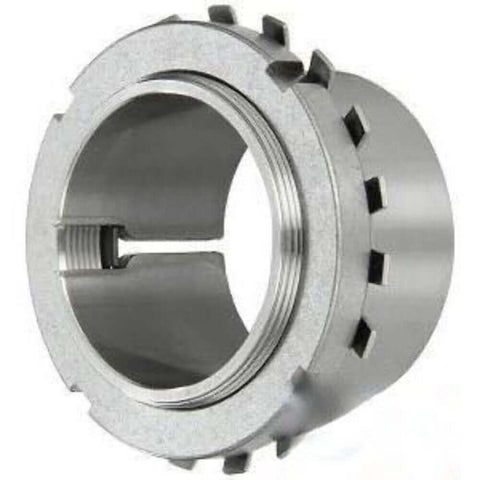

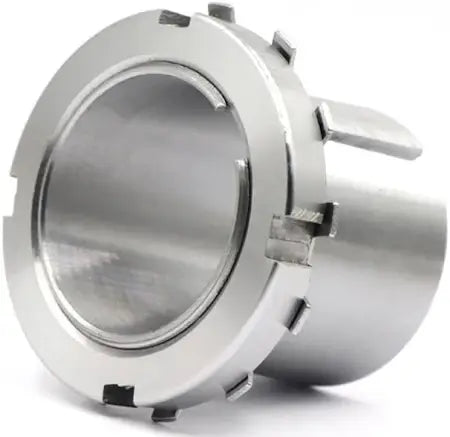

H3128 Bearing Adapter Sleeve with Lock Nut & Washer
Regular price
$149.98
🛠️ H3128 Bearing Adapter Sleeve with Lock Nut & Washer

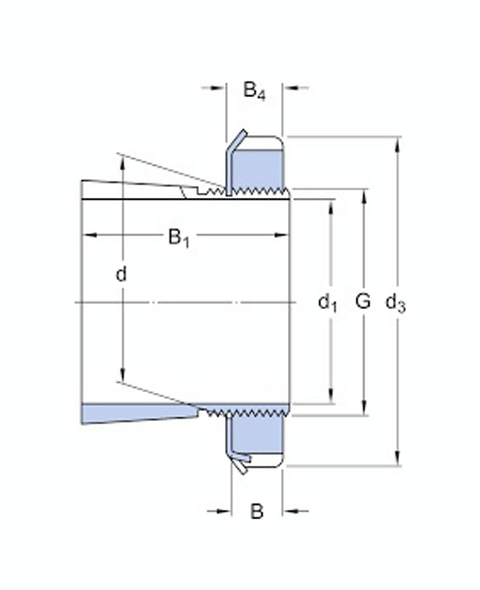

| Parameter | Typical Value / Description |
|---|---|
| Designation | H3128 |
| Suitable Shaft Diameter (d) | 125 mm |
| Adapter Sleeve Bore Diameter (d1) | ~130 mm |
| Thread Size (Lock Nut) | M130×2 |
| Sleeve Width (B) | Approx. 85-90 mm |

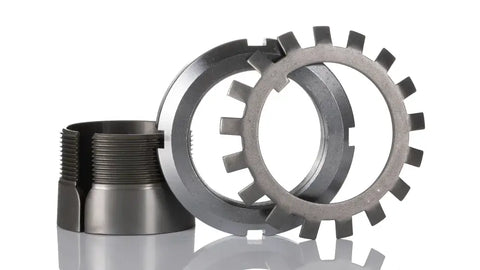

| Lock Nut & Lock Washer | Included (Typically KM28 Nut & MB28 Washer) |
| Material | High-quality case-hardened steel |
| Surface Finish | Precision ground |
| Approximate Weight | ~7.0 - 8.5 kg (varies slightly by manufacturer) |
🔧 Function & Application
The H3128 adapter sleeve is used to mount tapered bore bearings onto cylindrical shafts, allowing for quick installation and secure fixation using a lock nut and washer. This system eliminates the need for shaft shoulders or other complex machining operations.
✅ Common Industrial Applications:
-
Spherical roller bearings (e.g., 22228K, 23228K)
-
Conveyor and drive systems
-
Pumps, compressors, and fans
-
Industrial gearboxes and motors
-
Mining and heavy equipment
-
Paper mills, steel plants, and cement industries
Its robust construction supports demanding load conditions, high speeds, and exposure to harsh operating environments.
