🛠️ H3124 Bearing Adapter Sleeve with Lock Nut & Washer

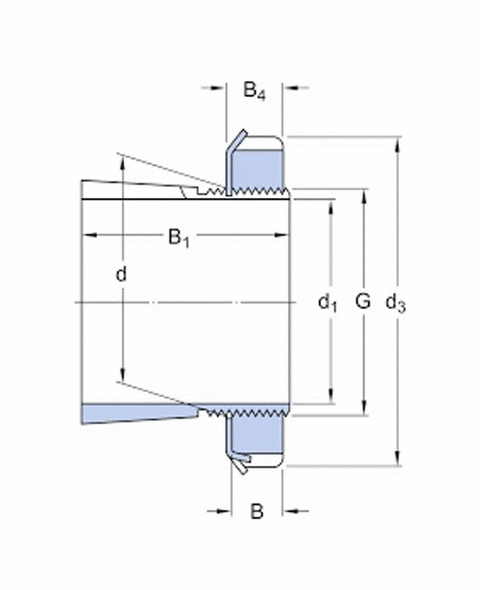

| Parameter | Typical Value / Description |
|---|---|
| Designation | H3124 |
| Suitable Shaft Diameter (d) | 110 mm |
| Adapter Sleeve Bore Diameter (d1) | ~115 mm (depending on manufacturer) |
| Thread Size (Lock Nut) | M115×2 |
| Width of Sleeve (B) | Approx. 75-80 mm |
| Lock Nut & Lock Washer | Included (KM24 nut and MB24 washer typically) |
| Material | Case-hardened high-grade steel |
| Surface Finish | Precision ground |
| Approximate Weight | ~5.5 - 6.5 kg (varies slightly by brand) |
🔧 Function & Use
The H3124 adapter sleeve is used to mount tapered bore bearings onto cylindrical shafts. It ensures a strong mechanical connection by tightening the bearing on the shaft with a lock nut and washer, which prevents axial movement and ensures smooth operation under load.
✅ Common Applications:
-
Electric motors
-
Gearboxes
-
Pumps and fans
-
Industrial conveyors
-
Agricultural and heavy-duty equipment
Its rugged design and heat-treated construction make it well-suited for high-load and high-speed environments.
