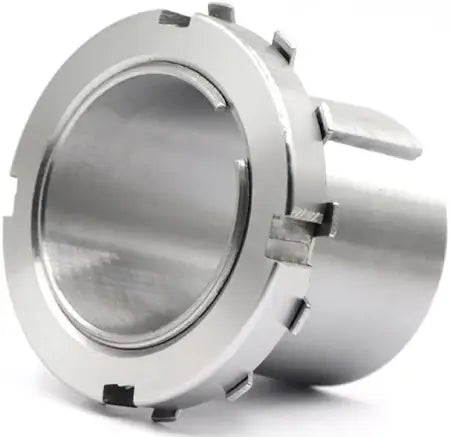

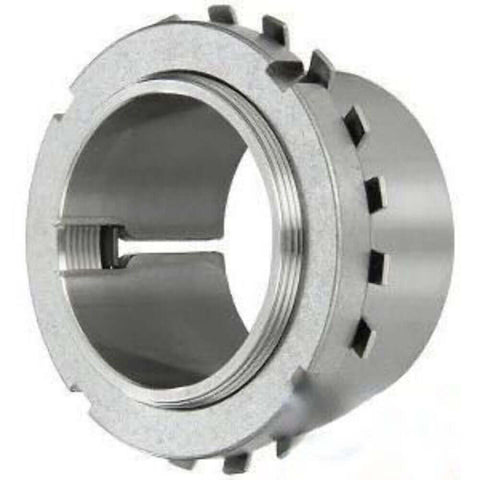

H3034 Bearing Adapter Sleeve with Lock Nut & Washer
Regular price
$259.98
H3034 Bearing Adapter Sleeve with Lock Nut & Washer

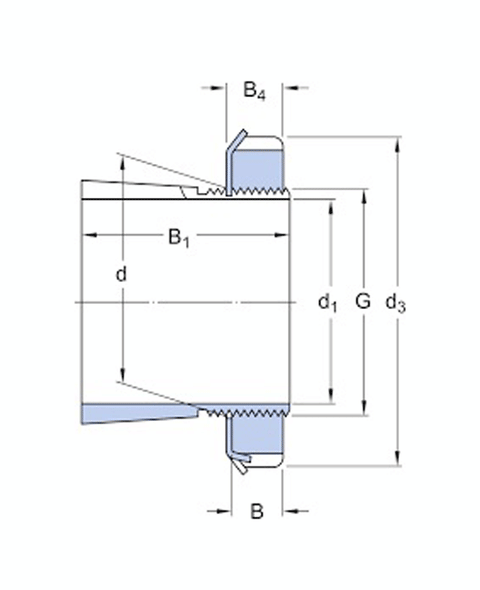

| Parameter | Typical Value / Description |
|---|---|
| Designation | H3034 |
| Suitable Shaft Diameter (d) | Approximately 170 mm |
| Adapter Sleeve Bore Diameter (d1) | Slightly larger than shaft diameter, typically around 175 mm |
| Thread Size (Lock Nut) | Commonly M175×2 or equivalent (verify exact size with supplier) |
| Sleeve Width (B) | Typically around 105-110 mm |

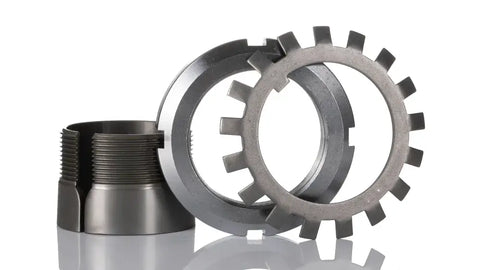

| Lock Nut & Washer | Included for secure axial fixation |
| Material | High-strength case-hardened steel |
| Surface Finish | Precision ground for smooth fit and ease of installation |
| Approximate Weight | Typically between 7 to 9 kg depending on dimensions and manufacturer |
Function and Application
The H3034 adapter sleeve is designed to mount tapered bore bearings onto cylindrical shafts securely. Tightening the lock nut presses the sleeve against the bearing, locking it firmly in place and preventing slippage.
