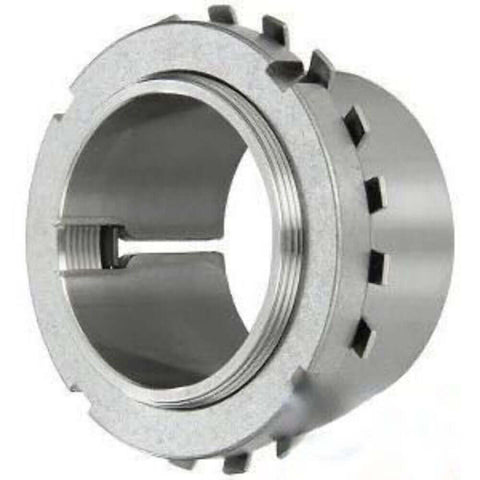

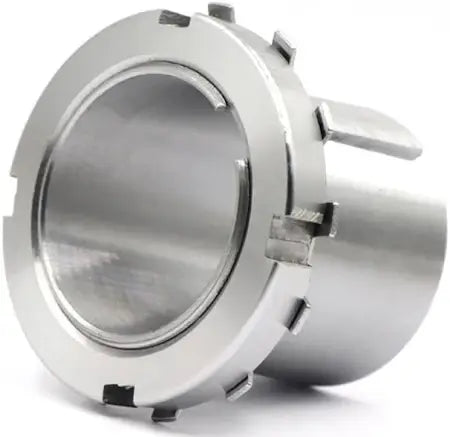

Bearing Adapter Sleeve With Lock Nut And Washer For 150 mm Shaft, Bore 160 mm, Thread M160x3, Width About 90 mm, Includes KM30 Lock Nut And MB30 Lock Washer, Designed For Mounting Large Tapered Shafts

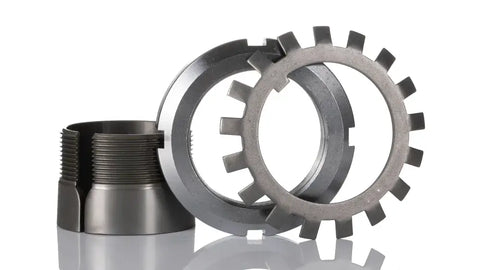

✔️ Single-unit sleeve with lock nut KM30 and washer MB30
This bearing adapter sleeve with lock nut and washer is designed to mount large tapered bore bearings on cylindrical shafts. It’s a common fit in heavy machinery, industrial gearboxes, conveyors, and large motor housings.
✅ Suitable shaft diameter (d): 150 mm
✅ Bore diameter (d1) of sleeve: 160 mm
✅ Thread: M160×3
✅ Width (B1): ~90 mm
✅ Lock nut: KM30
✅ Lock washer: MB30
✅ Compatible with large tapered bore bearings (e.g., 1230K, 2230K)
💡 What is a bearing adapter sleeve used for in heavy machinery and how does it help with large tapered bore bearings? This handy component secures bearings to shafts, simplifying alignment and service in industrial gearboxes and conveyors. - Used to mount heavy tapered bore bearings on cylindrical shafts - Provides secure retention with lock nut KM30 and lock washer MB30 - Improves installation, maintenance, and reliability in demanding equipment
