Bearing Adapter Sleeve With Lock Nut And Washer For 150 mm Shaft, Bore About 160 Mm, Lock Nut Thread M160x3, Sleeve Width About 110-115 Mm, Includes KM34 Nut And MB34 Washer, Suitable For Heavy Machinery And Industrial Use
✔️ Shaft diameter 150mm, bore ~160mm, width 110-115mm, M160x3 lock nut

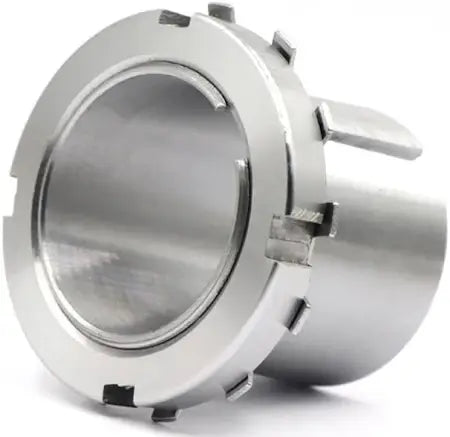

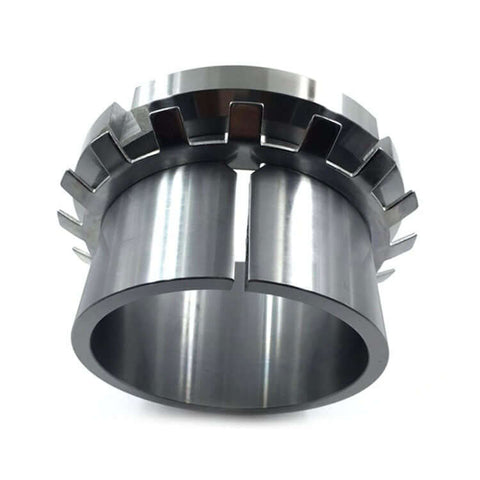

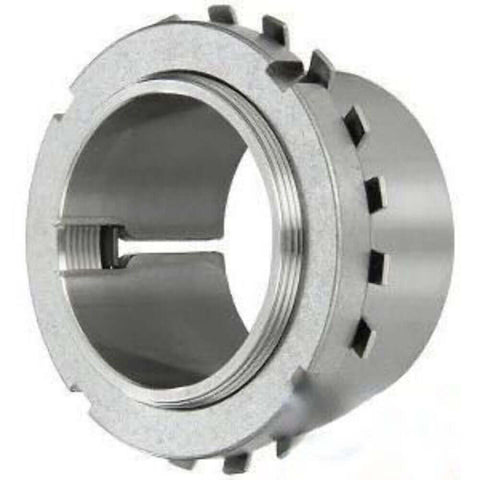

The H2334 bearing adapter sleeve is a precision-machined mounting component used to attach tapered-bore spherical roller bearings onto cylindrical shafts. Pack size: 1 unit. It provides secure axial locking with a lock nut and washer (typically KM34 Nut & MB34 Washer) and is designed for heavy-duty equipment in mining, cement, steel, and processing plants. Made from case-hardened alloy steel with a precise ground finish, this sleeve supports sealed ball bearing configurations in demanding environments.

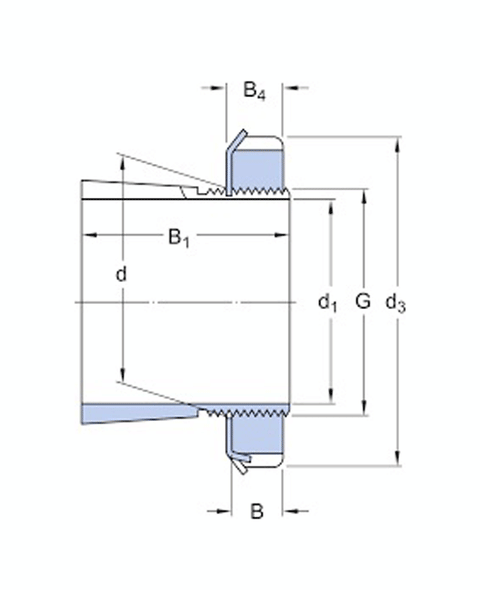

✅ Shaft diameter d = 150 mm
✅ Bore diameter d1 ≈ 160 mm
✅ Sleeve width B ≈ 110-115 mm

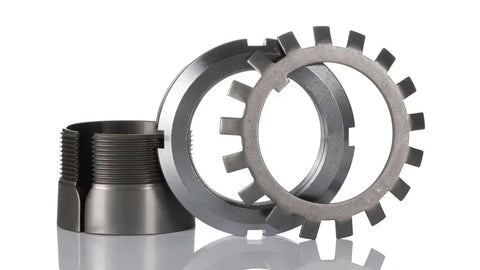

✅ Lock nut thread M160×3 and MB34 washer included
✅ Material: case-hardened alloy steel; finish: precision machined and ground
✅ Approx weight: 13-15 kg
💡 What is a bearing adapter sleeve used for in heavy equipment?
It's a handy mounting solution that lets you attach tapered bore bearings to cylindrical shafts with secure axial locking.
- Handy way to fit tapered bore bearings on standard shafts - Lets you lock bearings in position with a lock nut and washer - Improves stability and load handling in high torque systems
