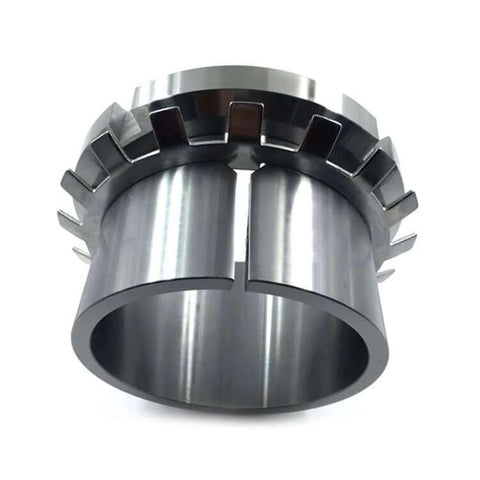

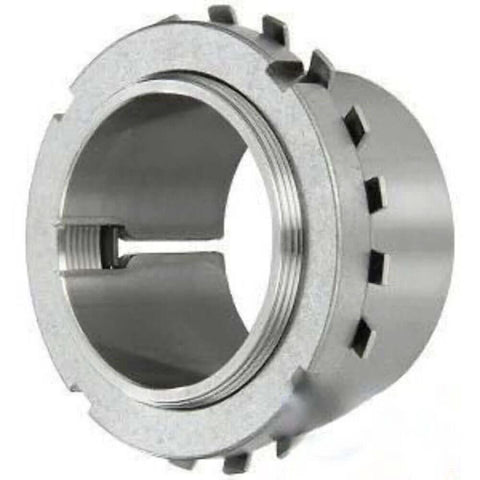

H2328 Bearing Adapter Sleeve with Lock Nut & Washer

Regular price $230.00
SKU: H2328-Adapter-Sleeve
UPC: 00193019347942





🛠️ H2328 Bearing Adapter Sleeve with Lock Nut & Washer

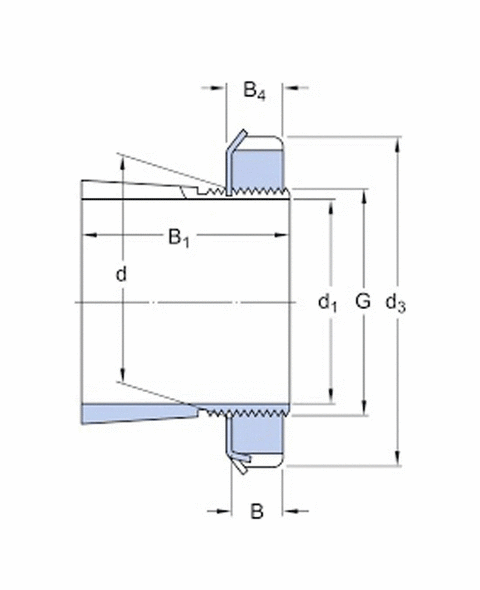

Parameter Specification
Designation H2328
Suitable Shaft Diameter (d) 125 mm
Adapter Sleeve Bore (d1) ~135 mm
Thread Size (Lock Nut) M135×2
Sleeve Width (B) Approx. 95-100 mm

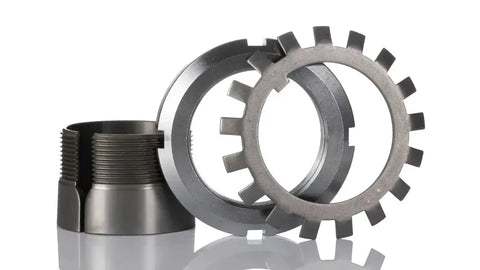

Lock Nut & Washer Included (typically KM28 & MB28)
Taper Ratio 1:12
Material Case-hardened high-grade steel
Surface Finish Precision ground
Approximate Weight ~9-11 kg (varies by manufacturer)

🔧 Purpose & Function

The H2328 adapter sleeve is used to mount tapered bore spherical roller bearings (e.g., 23228K or 22228K) onto cylindrical shafts. It simplifies installation and removal, especially in applications where disassembling the shaft or bearing seat is difficult or costly.

This sleeve expands against the shaft and the tapered bore of the bearing when the lock nut is tightened. The lock washer keeps the nut securely in place, ensuring a firm hold and vibration resistance during operation.


✅ Common Applications

  • Cement and mining equipment

  • Steel and paper mills

  • Pumps and large electric motors

  • Industrial fans and blowers

  • Gearboxes, mixers, and crushers

The H2328 sleeve is ideal for medium- to heavy-load applications and is favored for its ease of use, reusability, and high load-handling capability.
