Bearing Adapter Sleeve With Lock Nut And Washer For H2324, 110 Mm Shaft Diameter, Bore About 120 Mm, Lock Nut Thread M120x2, Sleeve Width 85 To 90 Mm, Includes KM24 Nut And MB24 Washer
No reviews
Title
Regular price
$145.98
SKU: H2324-Adapter-Sleeve
UPC: 00193019347430
UPC: 00193019347430

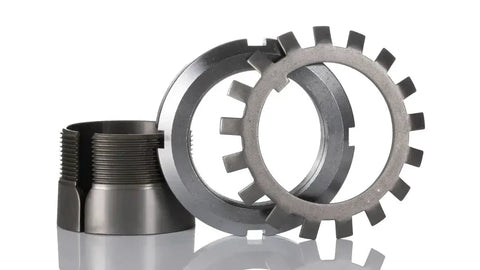

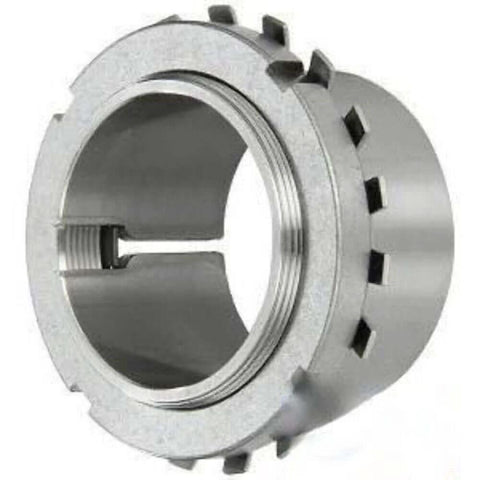

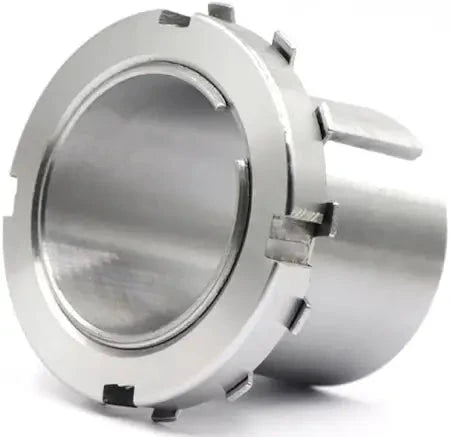

H2324 Single Bearing Adapter Sleeve for Lock Nut Mount
✔️ Fits 110 mm shaft, bore ~120 mm, M120×2 nut & washer included
✅ Shaft diameter (d): 110 mm
✅ Sleeve bore (d1): ~120 mm
✅ Thread size (Lock Nut): M120×2
✅ Sleeve width (B): ~85-90 mm
✅ Weight: ~6.5-8 kg
✅ Includes lock nut & washer: KM24 nut & MB24 washer
✅ Finish: precision machined and ground
✔️ Fits 110 mm shaft, bore ~120 mm, M120×2 nut & washer included
The H2324 bearing adapter sleeve lets you mount tapered bore bearings onto cylindrical shafts quickly and securely. This setup is ideal for heavy-duty motors, pumps, conveyors, and gearboxes where precise bearing location matters without machining a taper into the shaft. Lock nut and washer are included to prevent loosening during operation.
✅ Material: case-hardened steel✅ Shaft diameter (d): 110 mm
✅ Sleeve bore (d1): ~120 mm
✅ Thread size (Lock Nut): M120×2
✅ Sleeve width (B): ~85-90 mm
✅ Weight: ~6.5-8 kg
✅ Includes lock nut & washer: KM24 nut & MB24 washer
✅ Finish: precision machined and ground
💡 What is a bearing adapter sleeve used for in heavy machinery?
It helps secure tapered bore bearings on straight shafts without shaft machining.

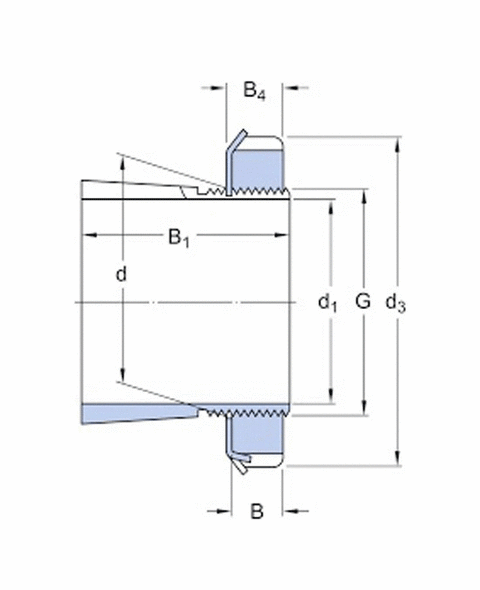

- It lets you mount tapered bore bearings on a straight shaft without machining a taper. - The lock nut and washer keep the bearing securely in place during operation. - It ensures accurate bearing location and easy maintenance.| Parameter | Specification |
|---|---|
| Designation | H2324 |
| Suitable Shaft Diameter (d) | 110 mm |
| Adapter Sleeve Bore (d1) | ~120 mm |
| Thread Size (Lock Nut) | M120×2 |
| Sleeve Width (B) | Approx. 85-90 mm |
| Lock Nut & Washer | Included (Typically KM24 Nut & MB24 Washer) |
| Material | High-quality case-hardened steel |
| Surface Finish | Precision machined and ground |
| Approximate Weight | ~6.5 to 8 kg (may vary slightly by manufacturer) |
