Bearing Adapter Sleeve With Lock Nut And Washer For 100 Mm Shaft, 110 Mm Bore, M105x2 Thread, About 68 Mm Width, Includes KM22 Lock Nut And MB22 Lock Washer For Tape Mounting Applications
✔️ Shaft dia 100 mm, bore 110 mm, thread M105×2, width 68 mm

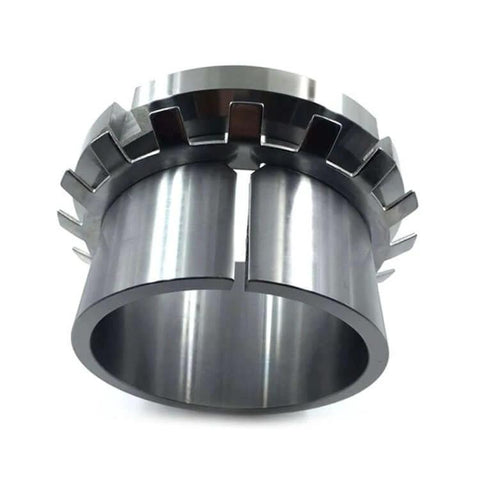

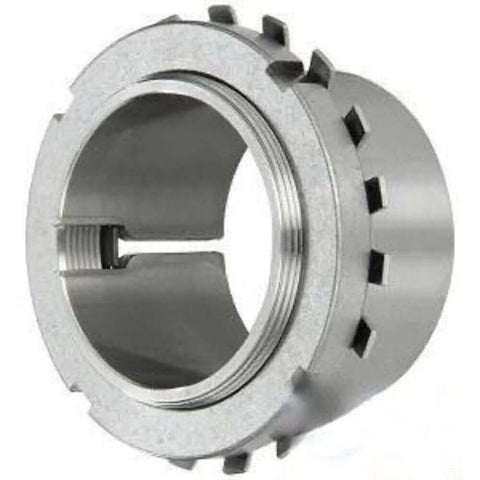

The H2322 Bearing Adapter Sleeve with Lock Nut & Washer is a mounting accessory designed to fit tapered bore bearings onto cylindrical shafts. It's typically used in plummer block housings like SNL522 and similar industrial equipment to keep bearings aligned and secure during operation.

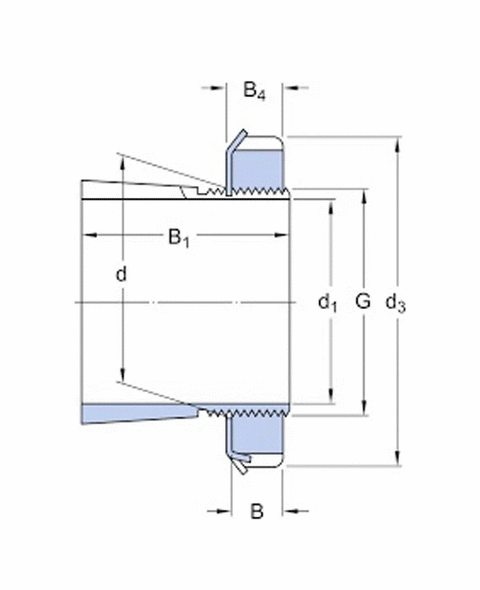

✅ Shaft diameter (d): 100 mm
✅ Sleeve bore diameter (d1): 110 mm
✅ Thread (G): M105×2
✅ Width (B1): ~68 mm
✅ Lock Nut KM22; Lock Washer MB22
✅ Applications: mounts tapered bore bearings such as 1222K, 2222K, 1322K on cylindrical shafts; used in plummer block housings like SNL522
💡 What is an adapter sleeve with lock nut and washer used for in mounted bearing assemblies?
These parts are handy for mounting tapered bore bearings on cylindrical shafts in industrial equipment.
- Helpful in plummer block housings like SNL522 - Secures tapered bore bearings such as 1222K, 1322K, 2222K - Paired with KM22 lock nut and MB22 washer for a tight lock - Fits shaft diameter 100 mm and sleeve bore 110 mm
