H2308 Bearing Adapter Sleeve With Lock Nut And Washer For 35 mm Shaft, 40 mm Bore, M35x1.5 Thread, Width About 32 Mm, Includes KM08 Lock Nut And MB08 Lock Washer, Designed For Mounting Tapered Bore Bearings On Machinery
Regular price
$19.99
Sale price$40.00you save $20.01

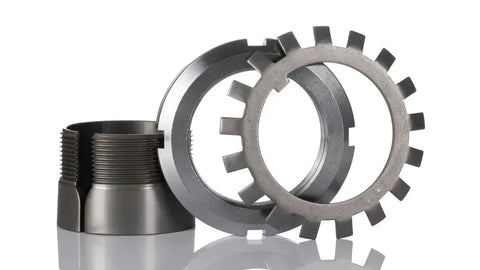

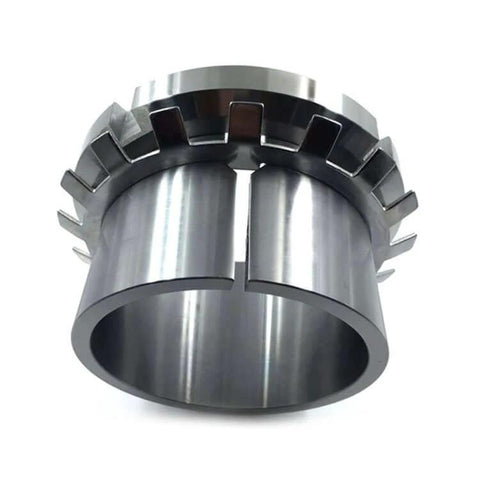

H2308 bearing adapter sleeve with lock nut and washer

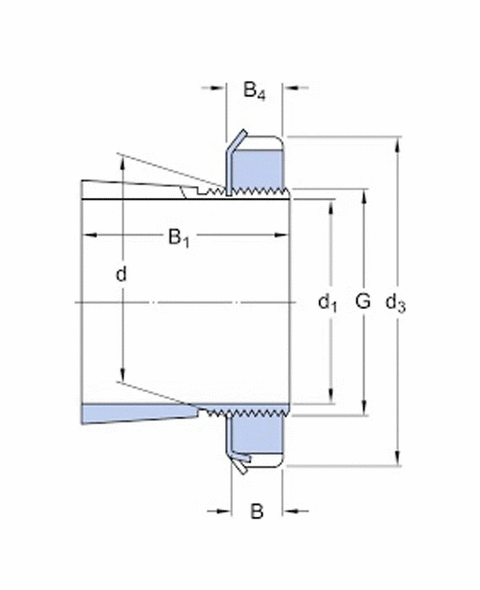

✔️ Shaft dia 35 mm; bore 40 mm; M35×1.5 thread; width ~32 mm; pack: single
✅ Sleeve bore diameter (d₁): 40 mm
✅ Thread (G): M35×1.5
✅ Width (B₁): ~32 mm
✅ Lock Nut: KM08
✅ Lock Washer: MB08
✔️ Shaft dia 35 mm; bore 40 mm; M35×1.5 thread; width ~32 mm; pack: single
This bearing adapter sleeve mounts tapered bore bearings such as 1208K or 2208K onto cylindrical shafts, and is commonly used in plummer block housings and other bearing arrangements.
✅ Suitable shaft diameter (d): 35 mm✅ Sleeve bore diameter (d₁): 40 mm
✅ Thread (G): M35×1.5
✅ Width (B₁): ~32 mm
✅ Lock Nut: KM08
✅ Lock Washer: MB08
💡 What is a bearing adapter sleeve used for? A handy component for mounting tapered bore bearings onto cylindrical shafts. - Mounts tapered bore bearings onto shafts in plummer block housings - Lock nut and washer compatibility with KM08/MB08 - Improves alignment and serviceability in machinery
