Bearing Adapter Sleeve With Lock Nut And Washer For Tapered Bore Bearings Fits 30 Mm Shaft And 35 Mm Bore With M30x1.5 Thread Includes KM07 Lock Nut And MB07 Lock Washer Ideal For Secure Mounting Of Tapered Bore Bearings

H2307 Bearing Adapter Sleeve with Lock Nut (Single)
✔️ Pack: single; shaft 30 mm; bore 35 mm; M30x1.5 thread

This adapter sleeve with lock nut and washer is designed to mount tapered bore bearings onto cylindrical shafts. It's a common fit in plummer block housings like SNL507, providing a secure, compact mounting option for 30 mm shafts with M30x1.5 threads.

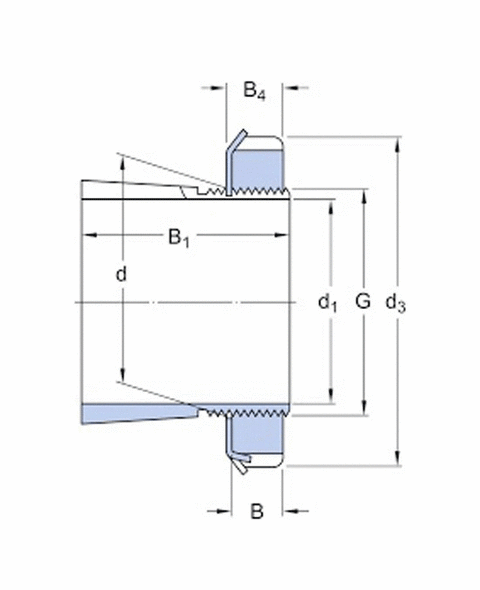

✅ Shaft diameter (d): 30 mm
✅ Bore diameter (d1): 35 mm
✅ Thread (G): M30x1.5
✅ Width (B1): approx. 30 mm
✅ Lock Nut: KM07
✅ Lock Washer: MB07
✅ Usage: Mounts tapered bore bearings such as 1207K or 2207K on cylindrical shafts; works with SNL507 plummer block housings

💡 What is an adapter sleeve with lock nut used for in bearing mounts?

This handy component makes it easy to mount tapered bore bearings on standard shafts, securing them in place in housings. - Handles 30 mm shafts with M30x1.5 thread - Includes KM07 lock nut and MB07 washer - Commonly used in plummer block housings like SNL507 - Helps align and secure bearings such as 1207K and 2207K
