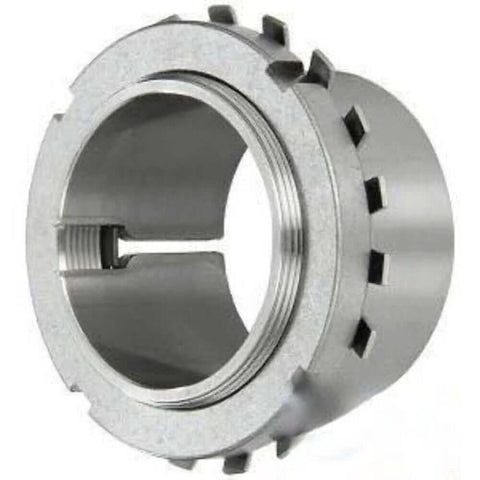

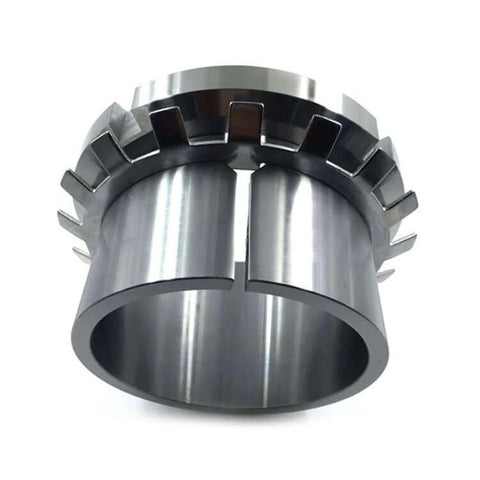

H2306 Bearing Adapter Sleeve with Lock Nut & Washer
Regular price
$19.99
Sale price$40.00you save $20.01
🔩 Designation: H2306

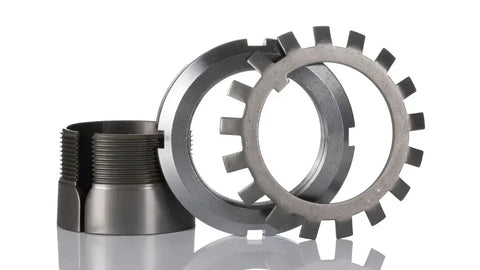

Type: Adapter Sleeve with Lock Nut & Washer

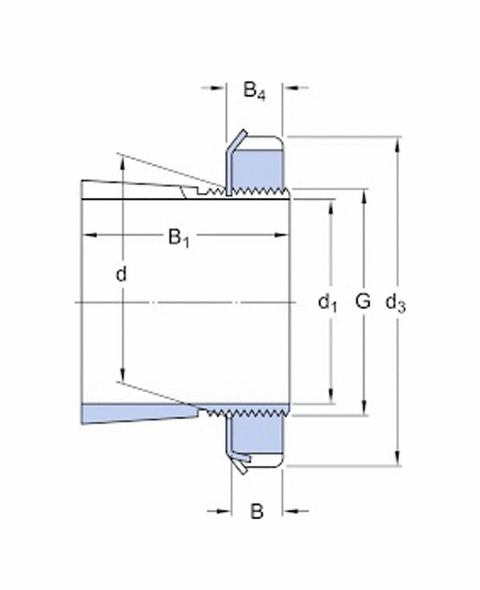

📐 Technical Specifications:
| Parameter | Value |
|---|---|
| Suitable Shaft Diameter (d) | 25 mm |
| Bore Diameter of Sleeve (d₁) | 30 mm |
| Thread (G) | M25×1.5 |
| Width (B₁) | ~28 mm |
| Lock Nut | KM06 |
| Lock Washer | MB06 |
⚙️ Application:
-
Used for mounting tapered bore bearings on cylindrical shafts.
-
Commonly installed in plummer block housings or bearing units for light to medium-duty applications.
