Bearing Adapter Sleeve With Lock Nut And Washer For Self Aligning Ball And Spherical Roller Bearings, Hardened Steel Construction, 100 Mm Shaft Diameter, Sleeve Bore 110 Mm, M100x2 Thread, KM22 Nut, MB22 Washer, Approximate Weight 2.65 Kg

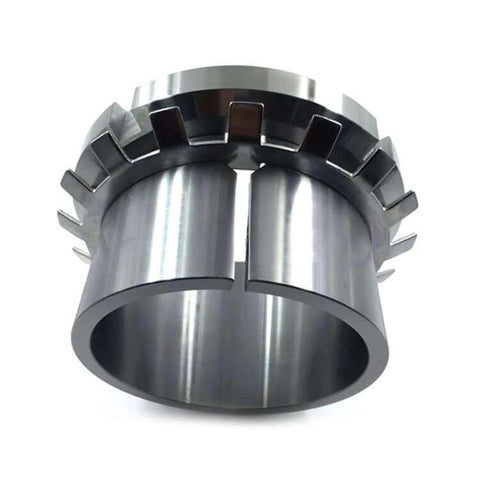

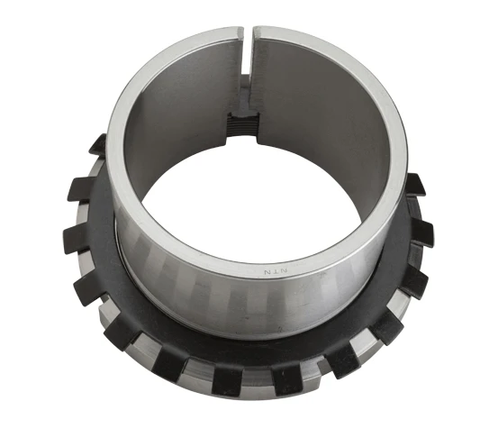

H222 Bearing Adapter Sleeve with Lock Nut and Washer
✔️ Pack: 1 unit, d 100 mm, d1 110 mm, G M100x2, B1 ~60 mm

The H222 bearing adapter sleeve is a hardened steel component used to mount self-aligning ball and spherical roller bearings with a tapered bore (1:12) onto a 100 mm shaft. This single-unit kit includes the adapter sleeve, lock nut KM22, and lock washer MB22 for secure, precise mounting.

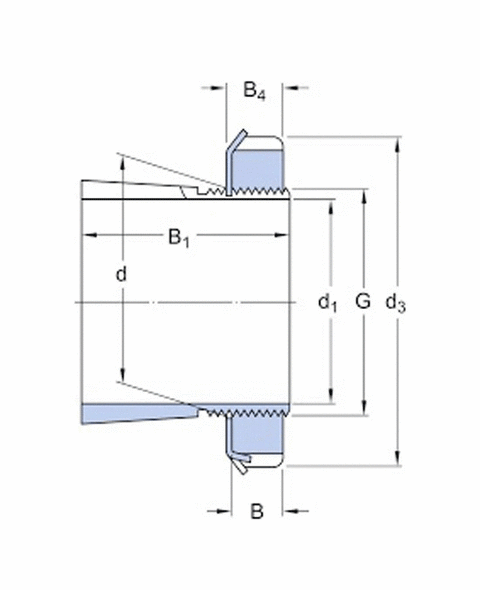

✅ Designation: H222; Shaft diameter: 100 mm; Adapter bore (d1): 110 mm; Thread G: M100x2; Width B1: ~60 mm
✅ Lock Nut: KM22; Lock Washer: MB22; Weight: approx 2.65 kg
✅ Material: Hardened steel; Use: self-aligning ball or spherical roller bearings with tapered bore (1:12)

💡 What is a bearing adapter sleeve used for? This handy device lets you mount tapered-bore bearings onto a shaft with a precise fit and secure fixation.

• It enables mounting tapered bore bearings on standard shafts with precise alignment.
• Includes lock nut KM22 and lock washer MB22 for secure installation.
• Made from hardened steel for durability in heavy-duty setups.
