Bearing Housing Adapter Sleeve With Lock Nut And Washer For Precise Coupling On 80 mm Shafts Bore 85 mm Thread M85x2 Width About 58 mm Supplied With KM18 Lock Nut And MB18 Lock Washer For Secure Reliable Operation

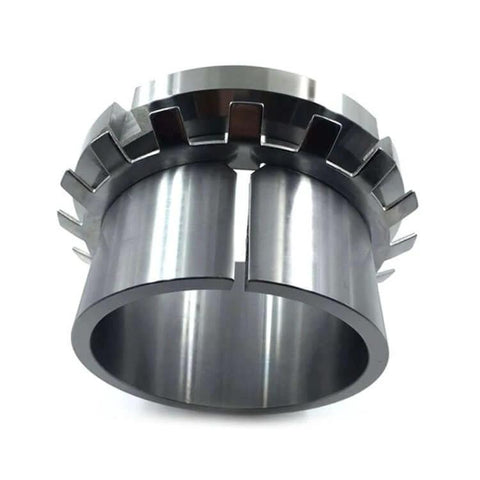

H218 Adapter Sleeve Bearing Housing with Lock Nut (Single)
✔️ Shaft 80 mm, bore 85 mm, M85×2, KM18 locknut MB18

Designed to mount on an 80 mm shaft, this H218 adapter sleeve delivers a precise 85 mm bore and M85×2 thread. Use with KM18 lock nut and MB18 washer for secure, easy installation in industrial gear, conveyors, and machine tools.

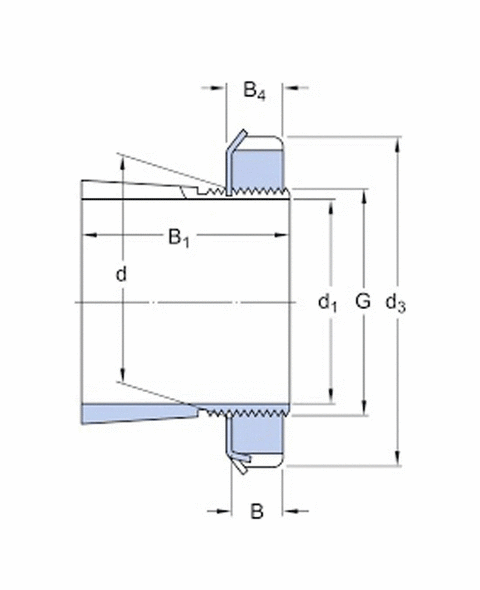

✅ Design designation: H218
✅ Shaft diameter (d): 80 mm
✅ Bore diameter (d1): 85 mm
✅ Thread (G): M85×2
✅ Width (B1): ~58 mm
✅ Lock Nut: KM18
✅ Lock Washer: MB18

💡 What is an adapter sleeve bearing used for? It's a handy way to mount rotating parts on shafts with secure fit and precise alignment.

- Handy for mounting rotating parts on shafts in conveyors and machines
- Keeps components aligned and supported under radial loads
- Integrates lock nut KM18 and MB18 washer for quick setup
- Compatible with 80 mm shafts and 85 mm bores using M85×2 thread
