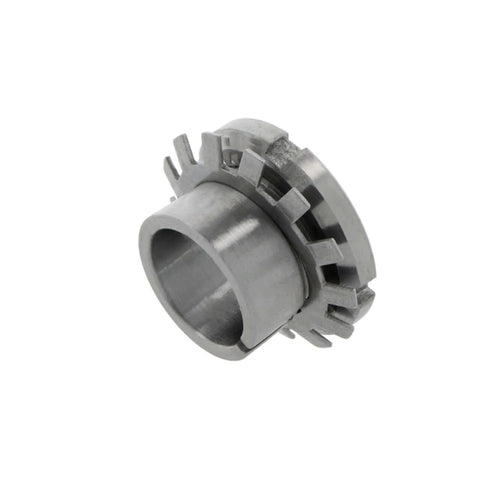

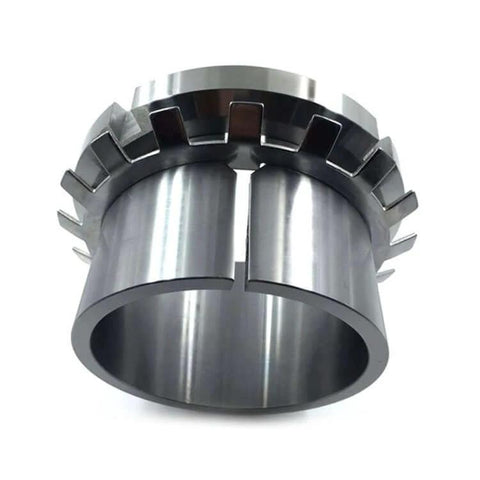

H216 Bearing Housings Adapter Sleeves w/Lock Nut & Washer
Regular price
$29.99
Sale price$60.00you save $30.01

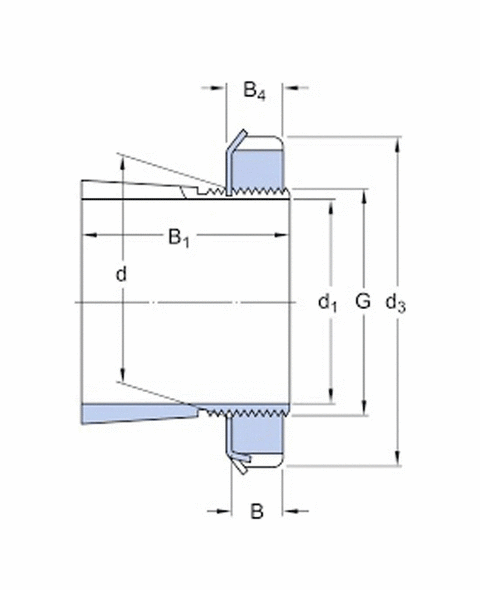

🔩 H216 Adapter Sleeve, General Specifications:
| Parameter | Value |
|---|---|
| Designation | H216 |
| Suitable shaft diameter (d) | 70 mm |
| Adapter sleeve bore (d1) | 80 mm |
| Thread (G) | M70×2 |
| Lock nut | KM16 |
| Locking washer | MB16 |
| Width (B1) | ~52 mm (varies slightly by brand) |
| Fits bearing inner bore | Tapered bore (1:12) |
| Common housing match | SNL 516-613, SNL 516-615, etc. |
✅ Application Context:
-
Used With: Bearings with tapered bores (e.g., 2216K, 1316K, 22216K).
-
Mounting: Converts a smooth cylindrical shaft to accept a tapered bore bearing.
