Bearing Insert with 75mm Inner Diameter and 360 Degree Locking delivers secure mounting for rotating equipment, featuring a wide inner ring, spherical outer race, standard load capacity, and a relubrication groove for easy maintenance and long life
✔️ 75mm bore, dyn load 65,967 N, static 43,370 N, 1 unit
The mounted bearing insert with a 75 mm bore sits inside a housing to support rotating shafts in machinery. It’s a common choice in conveyors, woodworking equipment, and automated lines where reliable, easy-to-service shaft support is key.
✅ Bore: 75 mm (2.95 in)
✅ Dynamic load: 65,967 N
✅ Static load: 43,370 N
✅ 360° locking grip for stable retention
✅ R-Seal standard for dust and moisture protection
✅ Black oxide plated inner/outer rings for durability
✅ Wide inner ring with spherical outer ring for alignment flexibility
✅ Relubrication groove with oil hole on locking collar side
✅ Anti-rotation pin on opposite grease groove side
✅ Quantity: 1 piece

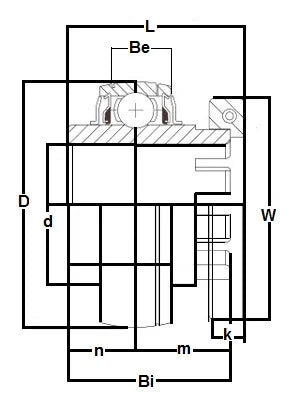

| Dimension | Metric | Imperial |
|---|---|---|
| Outer diameter D | 130 mm | 5.12 in |
| Width L | 85.3 mm | 3.36 in |
| Bore | 75 mm | 2.95 in |
| Thread (UNF) | 3/8-16 x 1.5 in | 3/8-16 x 1.5 in |
✅ Bore: 75 mm (2.95 in)
✅ Outer diameter: 130 mm (5.12 in)
✅ Overall width: 85.3 mm (3.36 in)
✅ Threaded hole: 3/8-16 x 1.5 in
✅ Mounting: single bearing insert in housings
💡 What is a mounted bearing insert used for in industrial machinery? This handy part gives solid shaft support and easy maintenance in various setups. - Handy for conveyors, packaging lines, and automation rigs - Supports shaft alignment while allowing smooth rotation - Easy relubrication and seal protection extend service life - Replaces whole assembly with minimal disassembly
