GR214-70mm Bearing Insert 70mm Mounted
$746.99
SKU: Kit19141
UPC: 00193019269152
UPC: 00193019269152
Item: GR214-70mm Bearing
Type: Bearing Insert
Shaft Diameter: 70mm
Dynamic Load Rating: 62275 N
Static Load Rating: 39144 N
Type: Bearing Insert
Shaft Diameter: 70mm
Dynamic Load Rating: 62275 N
Static Load Rating: 39144 N
| This item will be shipped within One Week Returns Subject to 15% restocking Fee |
|
GR214-70mm Bearing Insert GRIP-IT 360 Degree Locking 70mm Inner Diameter |

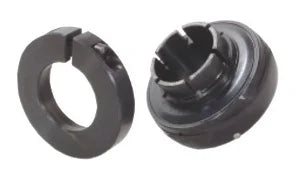

GR214-70mm Bearing Insert, Bearing is Standard load capacity, bearing is Wide inner ring with spherical outer ring, Bearing is relubrication groove with oil hole on locking collar side, bearing has anti-rotation pin on side opposite grease groove, Bearing is black oxide plated inner and outer rings, Standard seal is R-Seal.
|

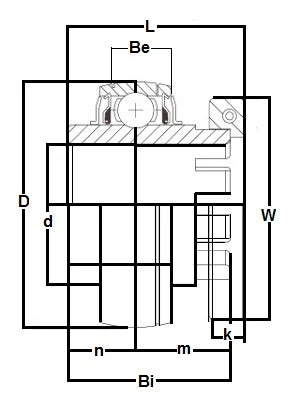

| Dimensions (mm) | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| D | L | Bi | Be | r | n | m | W | K | ds(UNF-Thread) | |
| 125 | 81.8 | 74.6 | 29 | 2.5 | 30.2 | 44.4 | 111.5 | 17.5 | 5/16-18x1 | |
