VXB

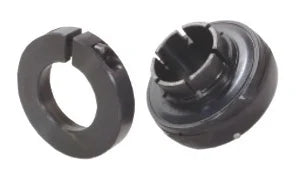

GR211-55mm Bearing Insert 55mm Mounted
$368.99
SKU: Kit19138
UPC: 00193019269121
UPC: 00193019269121
Item: GR211-55mm Bearing
Type: Bearing Insert
Shaft Diameter: 55mm
Dynamic Load Rating: 43325 N
Static Load Rating: 26022 N
Type: Bearing Insert
Shaft Diameter: 55mm
Dynamic Load Rating: 43325 N
Static Load Rating: 26022 N
| This item will be shipped within One Week Returns Subject to 15% restocking Fee |
|
GR211-55mm Bearing Insert GRIP-IT 360 Degree Locking 55mm Inner Diameter |
GR211-55mm Bearing Insert, Bearing is Standard load capacity, bearing is Wide inner ring with spherical outer ring, Bearing is relubrication groove with oil hole on locking collar side, bearing has anti-rotation pin on side opposite grease groove, Bearing is black oxide plated inner and outer rings, Standard seal is R-Seal.
|

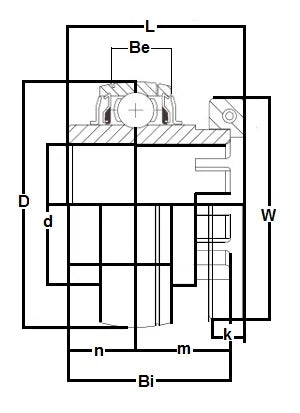

| Dimensions (mm) | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| D | L | Bi | Be | r | n | m | W | K | ds(UNF-Thread) | |
| 100 | 61.7 | 55.6 | 25 | 2.5 | 22.2 | 33.4 | 89 | 14.8 | 1/4-20x1 | |
