GR209-45mm Bearing Insert 45mm Mounted
Title
$238.99
SKU: Kit19136
UPC: 00193019269107
UPC: 00193019269107
Item: GR209-45mm Bearing
Type: Bearing Insert
Shaft Diameter: 45mm
Dynamic Load Rating: 32695 N
Static Load Rating: 18460 N
Type: Bearing Insert
Shaft Diameter: 45mm
Dynamic Load Rating: 32695 N
Static Load Rating: 18460 N
This item will be shipped within One Week Returns Subject to 15% restocking Fee |
GR209-45mm Bearing Insert GRIP-IT 360 Degree Locking 45mm Inner Diameter |
GR209-45mm Bearing Insert, Bearing is Standard load capacity, bearing is Wide inner ring with spherical outer ring, Bearing is relubrication groove with oil hole on locking collar side, bearing has anti-rotation pin on side opposite grease groove, Bearing is black oxide plated inner and outer rings, Standard seal is R-Seal.
|

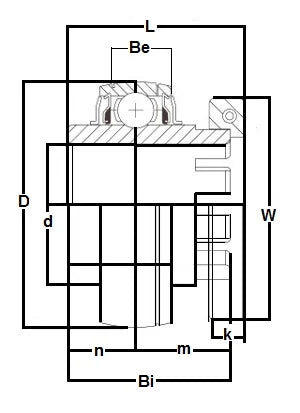

Dimensions (mm) | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|
D | L | Bi | Be | r | n | m | W | K | ds(UNF-Thread) | |
85 | 53.9 | 49.2 | 22 | 2 | 19 | 30.2 | 74.5 | 11.5 | 10-24x3/4 |
