VXB
GR205-25mm Bearing Insert 25mm Mounted
$107.99
SKU: Kit19109
UPC: 00193019268841
UPC: 00193019268841
Item: GR205-25mm Bearing
Type: Bearing Insert
Shaft Diameter: 25mm
Dynamic Load Rating: 14011 N
Static Load Rating: 7162 N
Type: Bearing Insert
Shaft Diameter: 25mm
Dynamic Load Rating: 14011 N
Static Load Rating: 7162 N
| This item will be shipped within One Week Returns Subject to 15% restocking Fee |
|

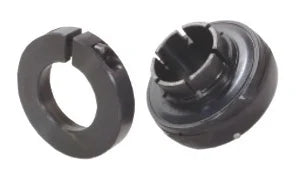

GR205-25mm Bearing Insert GRIP-IT 360 Degree Locking 25mm Inner Diameter |
GR205-25mm Bearing Insert, Bearing is Standard load capacity, bearing is Wide inner ring with spherical outer ring, Bearing is relubrication groove with oil hole on locking collar side, bearing has anti-rotation pin on side opposite grease groove, Bearing is black oxide plated inner and outer rings, Standard seal is R-Seal.
|

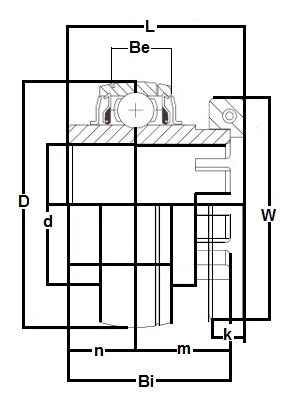

| Dimensions (Inches) | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| D | L | Bi | Be | r | n | m | W | K | ds(UNF-Thread) | |
| 52 | 38.4 | 34.5 | 15 | 1.5 | 14.3 | 20.2 | 49.2 | 9.5 | 8-32x5/8 | |
