Go To Pro Grade Stainless Steel Bridge Cam Welding Gauge Kit For Undercut Depth Fillet Weld Throat Pitting And Misalignment Measures 0 To 60 Degree Preparation Excess Weld Size Weld Length With Metric And Inch Options

Pro Grade Stainless Bridge Cam Welding Gauge for Weld Prep

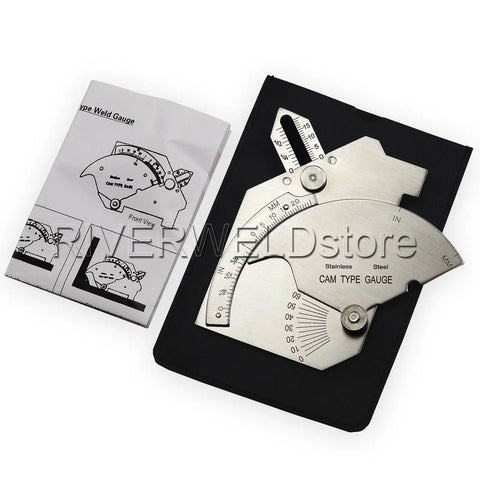

✔️ 1 kit with metric and inch options for undercut, pitting, throat, misalignment

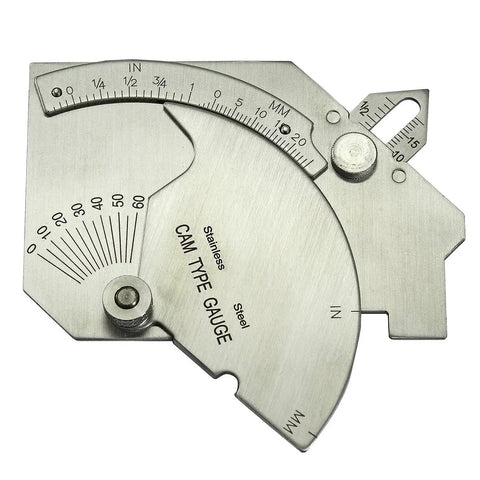

This stainless steel bridge cam welding gauge kit helps welders verify critical prep angles and measure conditions like undercut depth, pitting, throat size, and fillet weld length. It's commonly used in fabrication shops, welding cells, automotive, and metalworking projects to ensure joints meet spec.

✅ Material: stainless steel, silver color
✅ Measurement system: metric and inch options, general range up to 2 in / 50 mm
✅ Angle of preparation: 0° to 60°

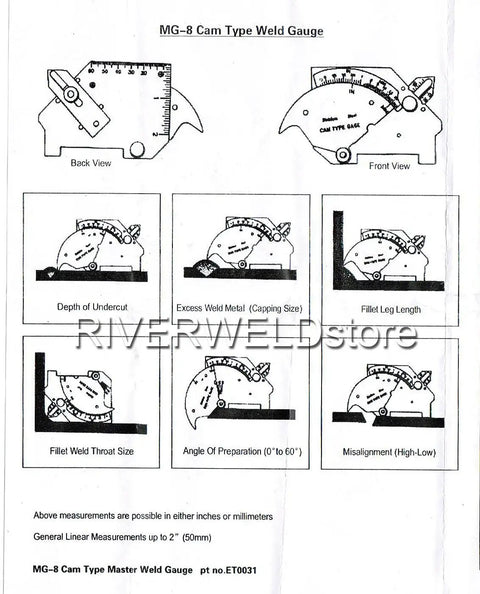

✅ Measures undercut depth, pitting depth, fillet weld throat size, fillet weld length, misalignment
✅ Used for welding prep, quality checks, and alignment verification in fabrication settings

💡 What is a welding gauge kit used for in metal fabrication and why pick this model?

It's handy for confirming weld prep specs and catching misalignment before welding begins.

- confirms 0 to 60 degree prep angle and excess weld size
- measures undercut depth, depth of pitting, fillet weld throat, and fillet weld length
- flags misalignment/high-low and helps ensure joint accuracy
✝️
