NB

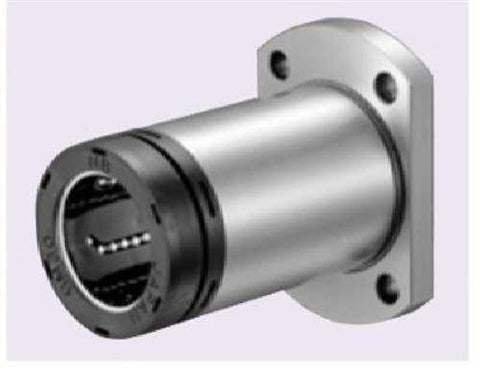

GMT8WUU NB 8mm Two Side Cut Double Wide Flange Motion Linear Bearings
$63.99
SKU: GMT8WUU_NB
UPC: 00193019106594
UPC: 00193019106594
Item: GMT8WUU NB Bearing
Type: Linear Ball Bushing
Shaft Diameter: 8mm
Number Of Ball Circuits: 4
Allowable static Moment No: 3.3 N.M
Type: Linear Ball Bushing
Shaft Diameter: 8mm
Number Of Ball Circuits: 4
Allowable static Moment No: 3.3 N.M
| GMT8WUU NB Two Side Cut Double Wide Flange:Slide Unit Made in Japan:NB Linear Systems |
GMT8WUU NB Two Side Cut Double Wide Flange Bearing, The inner diameter is 8mm, The retainer material is resin, Series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), made in Japan.
|

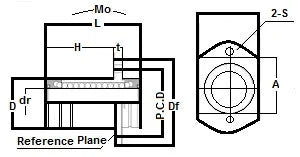

| Major Dimensions | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| dr | D | L | H | Df | t | W | A | S | ||
| mm | tolerance | mm | tolerance | |||||||
| 8 | 0-10 | 15 | 0-13 | 36 | 25.1 | 32 | 4 | 21 | 24 | 3.5 |
