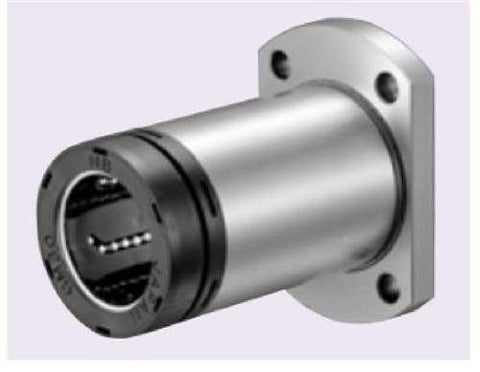

GMT25WUU NB 25mm Two Side Cut Double Wide Flange Motion Linear Bearings
$92.95
Item: GMT25WUU NB Bearing
Type: Linear Ball Bushing
Shaft Diameter: 25mm
Number Of Ball Circuits: 6
Allowable static Moment No: 34.820 N.M
Type: Linear Ball Bushing
Shaft Diameter: 25mm
Number Of Ball Circuits: 6
Allowable static Moment No: 34.820 N.M
| GMT25WUU NB Two Side Cut Double Wide Flange:Slide Unit Made in Japan:NB Linear Systems |
GMT25WUU NB Two Side Cut Double Wide Flange Bearing, The inner diameter is 25mm, The retainer material is resin, Series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), made in Japan.
|

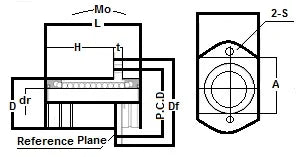

| Major Dimensions | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| dr | D | L | H | Df | t | W | A | F | S | ||
| mm | tolerance | mm | tolerance | ||||||||
| 25 | 0-12 | 40 | 0-19 | 91 | 70.5 | 62 | 5 | 46 | 40 | 32 | 5.5 |
