GER212-37-ZSFF Insert GRIP-IT 360 Degree 2 5/16 Inch Bearing
$696.99
SKU: Kit19369
UPC: 00193019271353
UPC: 00193019271353
Item: GER212-37-ZSFF Bearing
Type: Bearing Insert
Shaft Diameter: 2 5/16" Inch
Dynamic Load Rating: 52400 N
Static Load Rating: 32250 N
Type: Bearing Insert
Shaft Diameter: 2 5/16" Inch
Dynamic Load Rating: 52400 N
Static Load Rating: 32250 N
| This item will be shipped within One Week Returns Subject to 15% restocking Fee |
|

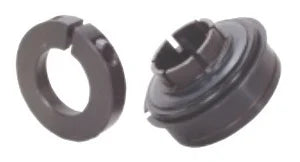

GER212-37-ZSFF Bearing Insert GRIP-IT 360 Degree Locking Set Screw Locking 2 5/16" Inch Inner Diameter |
GER212-37-ZSFF Bearing Insert GRIP-IT 360 Degree Locking, bearing is standard load capacity, bearing is Wide inner ring with Cylindrical outer ring and snap ring, bearing has relubrication groove with oil hole on side opposite of locking callar, bearing is black oxide plated inner and outer rings, bearing is nylon patched class 3A set screw, Standard seal is R-seal.
|

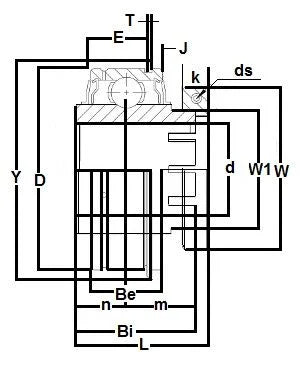

| Dimensions (Inches) | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| D | Bi | Be | L | n | m | E | W1 | J | T | Y | K | W | ds (UNF-Thread) |
| 4-21/64" | 2-9/16" | 1-1/4" | 2-53/64" | 1" | 1-9/16" | 1-1/64" | 3-3/64" | 1/8" | 7/64" | 4-19/32" | 11/16" | 4-1/16" | 5/16-18x1 |
