GER207-35mm Insert GRIP-IT 360 Degree 35mm Bearing
$191.99
SKU: Kit19339
UPC: 00193019271063
UPC: 00193019271063
Item: GER207-35mm Bearing
Type: Bearing Insert
Shaft Diameter: 35mm
Dynamic Load Rating: 19440 N
Static Load Rating: 10320 N
Type: Bearing Insert
Shaft Diameter: 35mm
Dynamic Load Rating: 19440 N
Static Load Rating: 10320 N
| This item will be shipped within One Week Returns Subject to 15% restocking Fee |
|

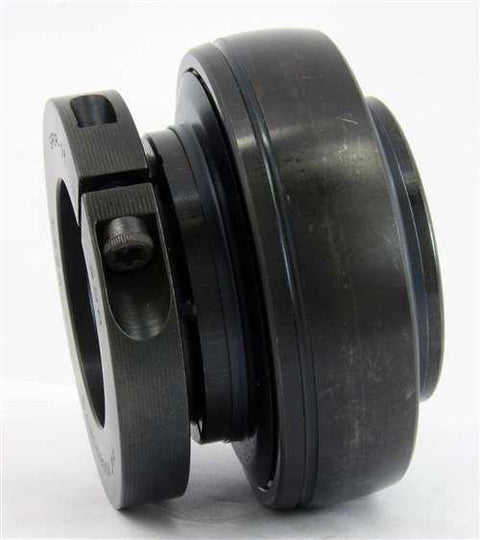

GER207-35mm Bearing Insert GRIP-IT 360 Degree Locking Set Screw Locking 35mm Inner Diameter |
GER207-35mm Bearing Insert GRIP-IT 360 Degree Locking, bearing is standard load capacity, bearing is Wide inner ring with Cylindrical outer ring and snap ring, bearing has relubrication groove with oil hole on side opposite of locking callar, bearing is black oxide plated inner and outer rings, bearing is nylon patched class 3A set screw, Standard seal is R-seal.
|

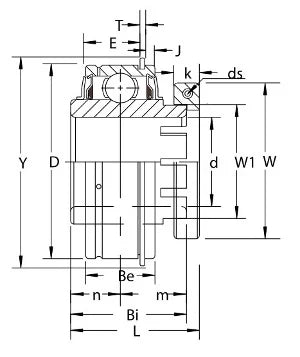

| Dimensions (mm) | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| D | Bi | Be | L | n | m | E | W1 | J | T | Y | K | W | ds (UNF-Thread) |
| 72 | 42.9 | 23.8 | 47.5 | 17.5 | 25.4 | 18.6 | 46.8 | 3.28 | 1.9 | 78.6 | 11.2 | 65.4 | 10-24x3/4 |
