VXB

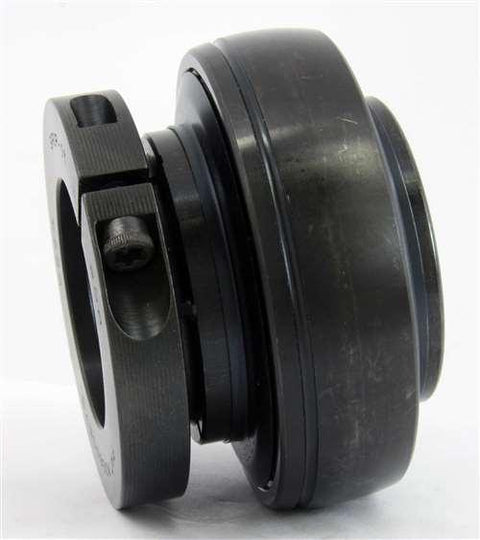

GER206-30mm Insert GRIP-IT 360 Degree 30mm Bearing
$144.99
SKU: Kit19338
UPC: 00193019271056
UPC: 00193019271056
Item: GER206-30mm Bearing
Type: Bearing Insert
Shaft Diameter: 30mm
Dynamic Load Rating: 19440 N
Static Load Rating: 10320 N
Type: Bearing Insert
Shaft Diameter: 30mm
Dynamic Load Rating: 19440 N
Static Load Rating: 10320 N
| This item will be shipped within One Week Returns Subject to 15% restocking Fee |
|
GER206-30mm Bearing Insert GRIP-IT 360 Degree Locking Set Screw Locking 30mm Inner Diameter |
GER206-30mm Bearing Insert GRIP-IT 360 Degree Locking, bearing is standard load capacity, bearing is Wide inner ring with Cylindrical outer ring and snap ring, bearing has relubrication groove with oil hole on side opposite of locking callar, bearing is black oxide plated inner and outer rings, bearing is nylon patched class 3A set screw, Standard seal is R-seal.
|

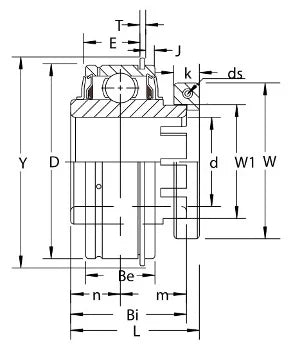

| Dimensions (mm) | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| D | Bi | Be | L | n | m | E | W1 | J | T | Y | K | W | ds (UNF-Thread) |
| 62 | 38.1 | 22.2 | 41.9 | 15.9 | 22.2 | 17 | 39.8 | 3.28 | 1.9 | 67.7 | 9.3 | 55.5 | 8-32X5/8 |
